0000094: No video nor audio

Tak-MK 2025-03-05 02:56 administrator ~0000321	S/N: P2004551

Tak-MK 2025-03-05 03:01 administrator ~0000322	Did basic maintenance, plus a galvanized coating on one half of the RF shield since it was in a pretty bad condition. Traces are pretty much swollen and breaking apart around the borders, so I won't dwell much on it for now.

Tak-MK 2025-03-05 03:04 administrator ~0000323	Other things to check: AC transformer is rusted. I've changed the thermal paste of both 7805 and 7812 but I have no idea if they're actually working or not. Old FFC cable between power supply area and main board should be replaced too.

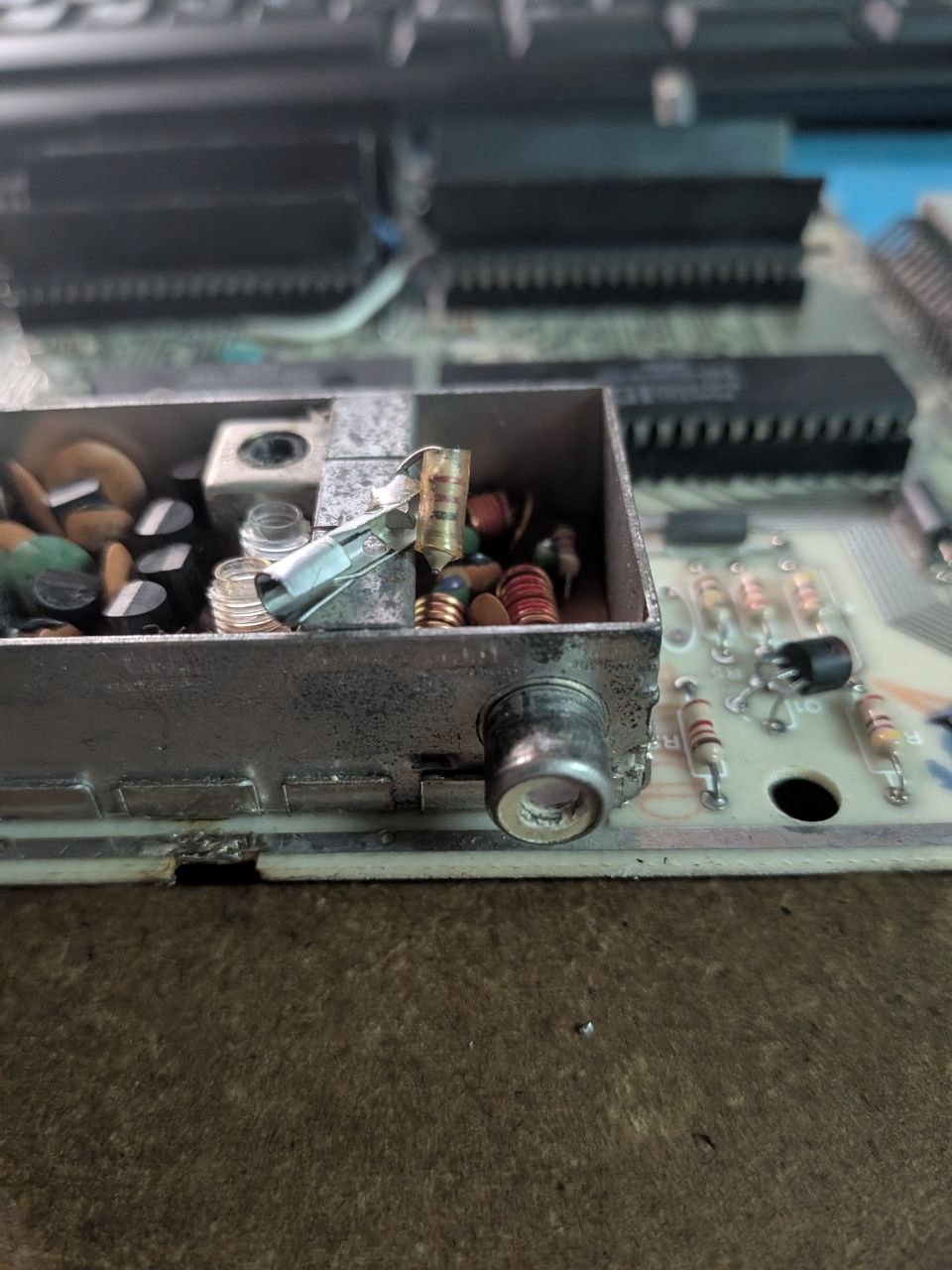

Tak-MK 2026-01-22 21:29 administrator ~0000334	All voltages from power supply board, plus both VR are correct. FFC cable too. The RF connector is damaged though; the positive side plus the resistor were pushed inside. photo_2026-01-22_21-29-10.jpg (167,636 bytes) photo_2026-01-22_21-29-10.jpg (167,636 bytes)

Tak-MK 2026-01-22 21:36 administrator ~0000335	Resistor is 22 ohm.

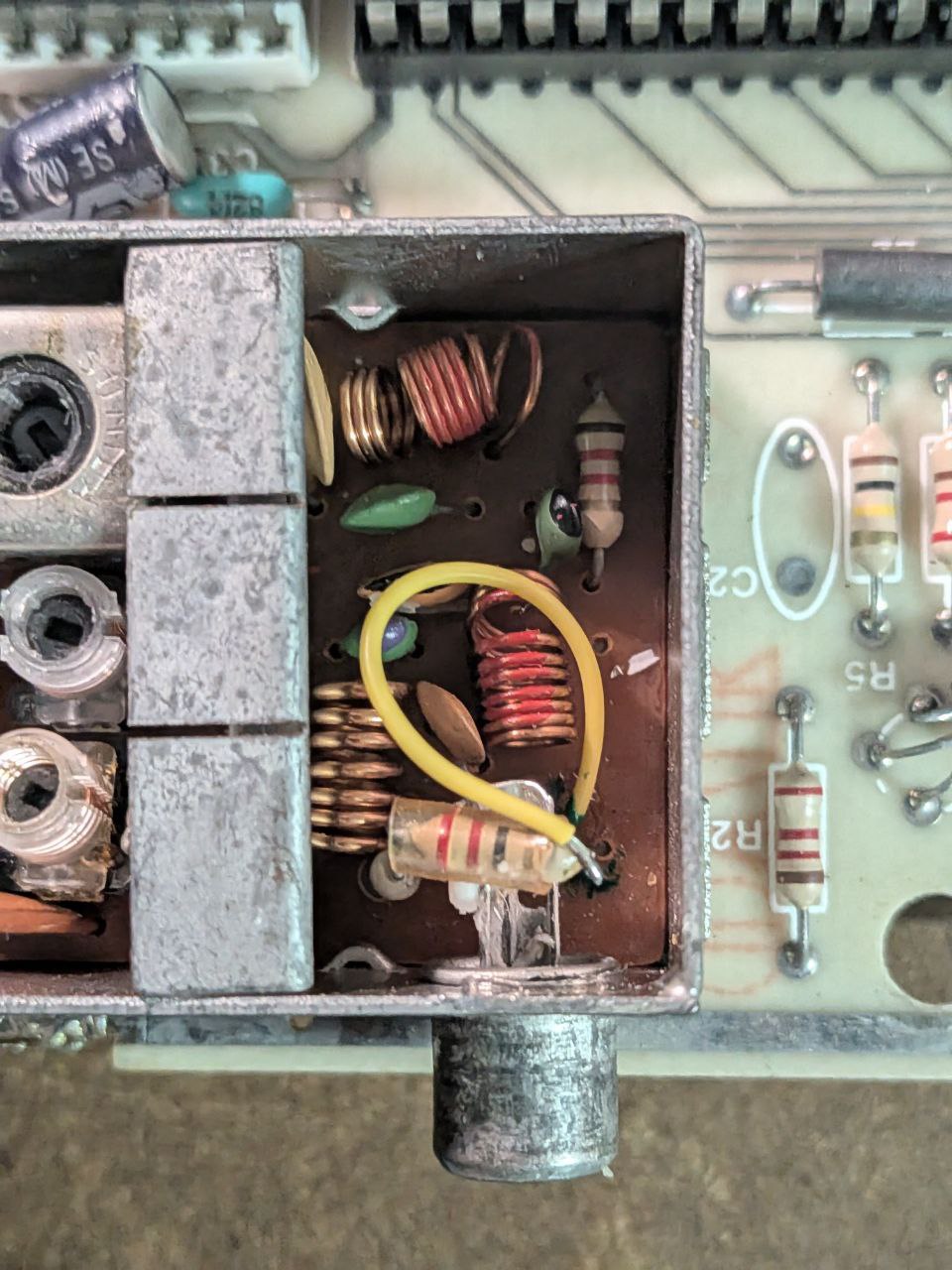

Tak-MK 2026-01-22 22:34 administrator ~0000336	Tried to fix it but still no signal. photo_2026-01-22_21-29-10-2.jpg (204,661 bytes) photo_2026-01-22_21-29-10-2.jpg (204,661 bytes)
