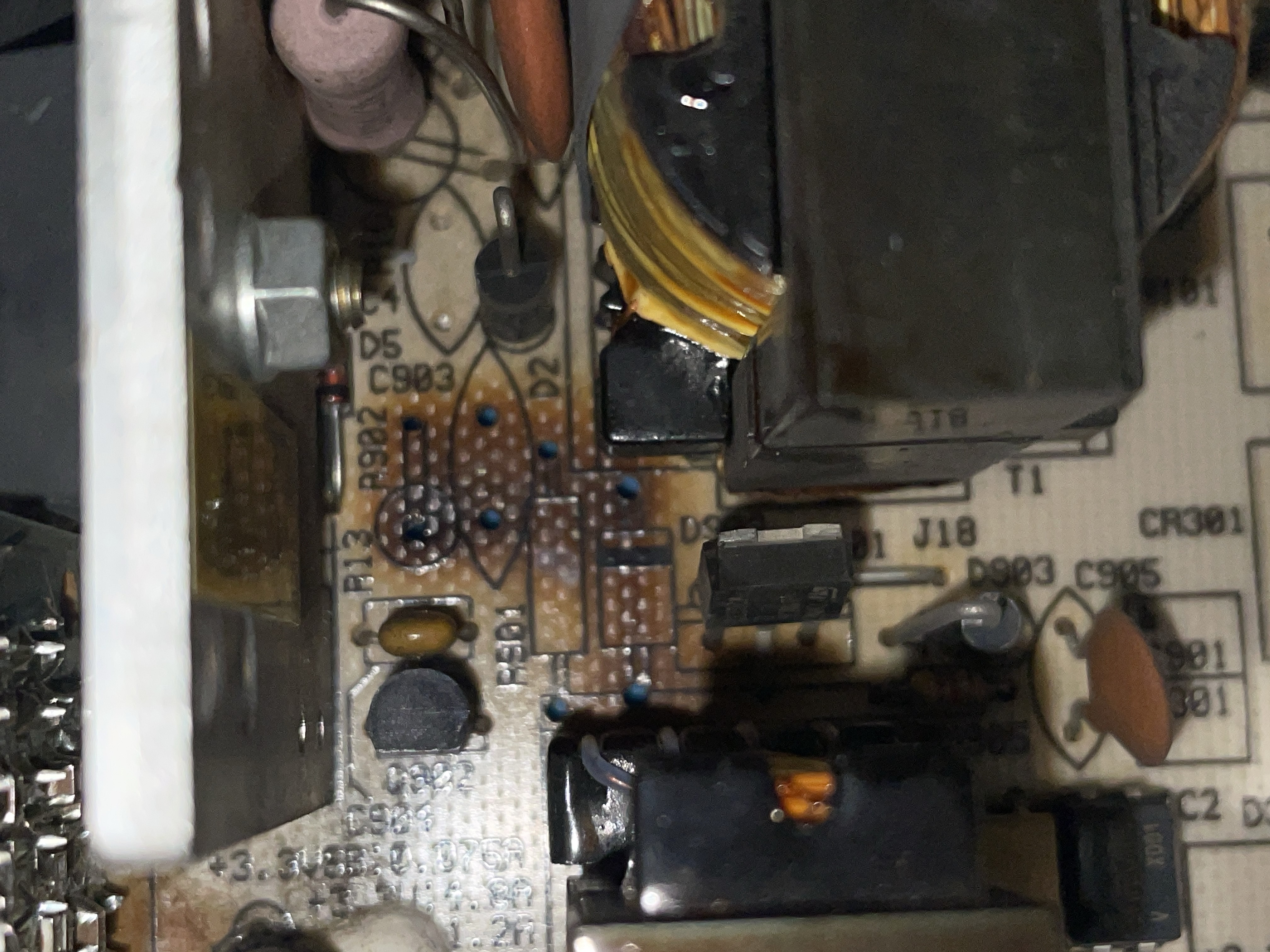

Resistor (R13 or R902) blew up. Probably the capacitor right next to it too. IMG_1343.JPG (4,799,582 bytes) |
|
|

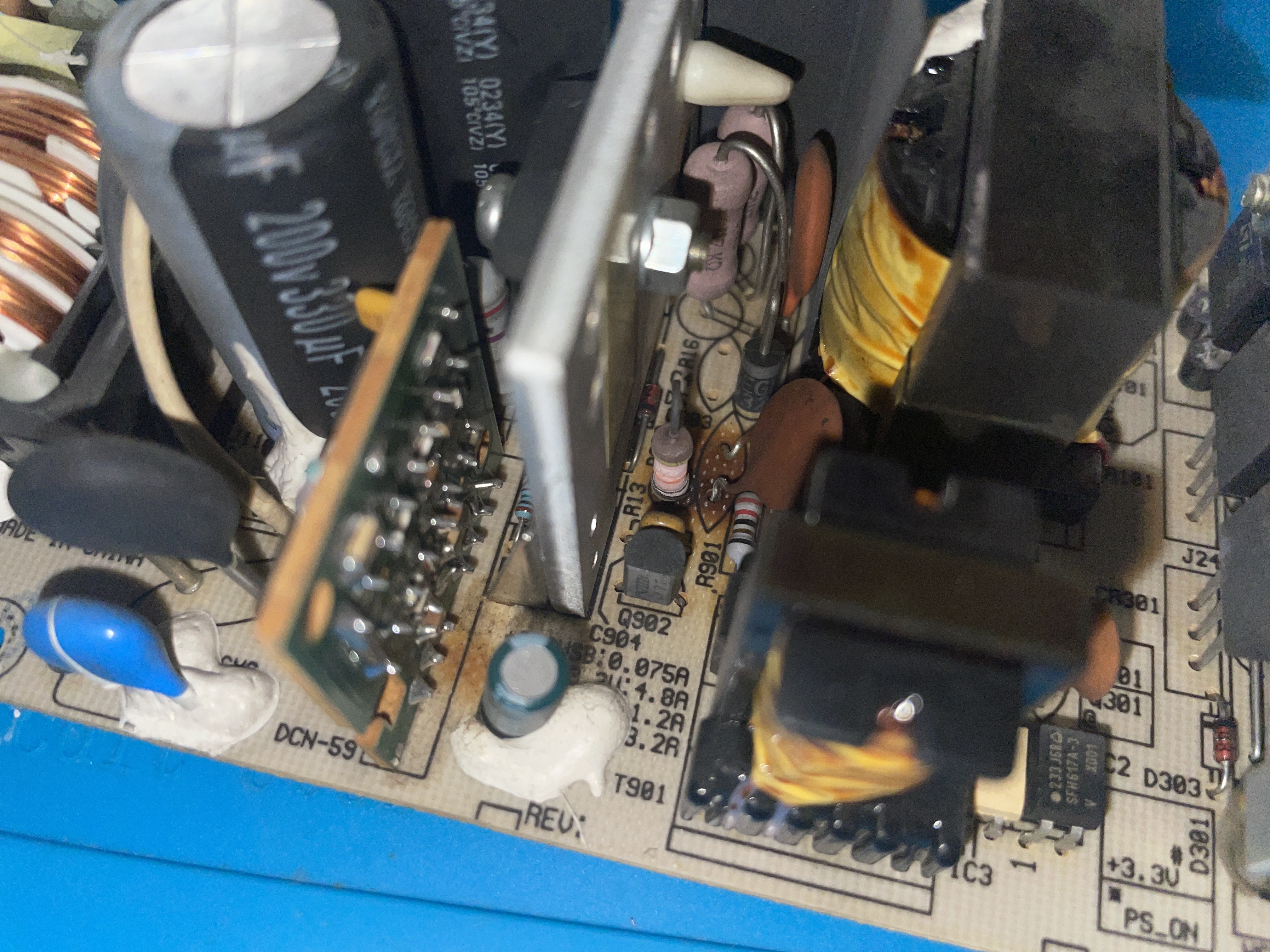

Power board: Delta Electronics DPSN-96AP-1 |
|
|

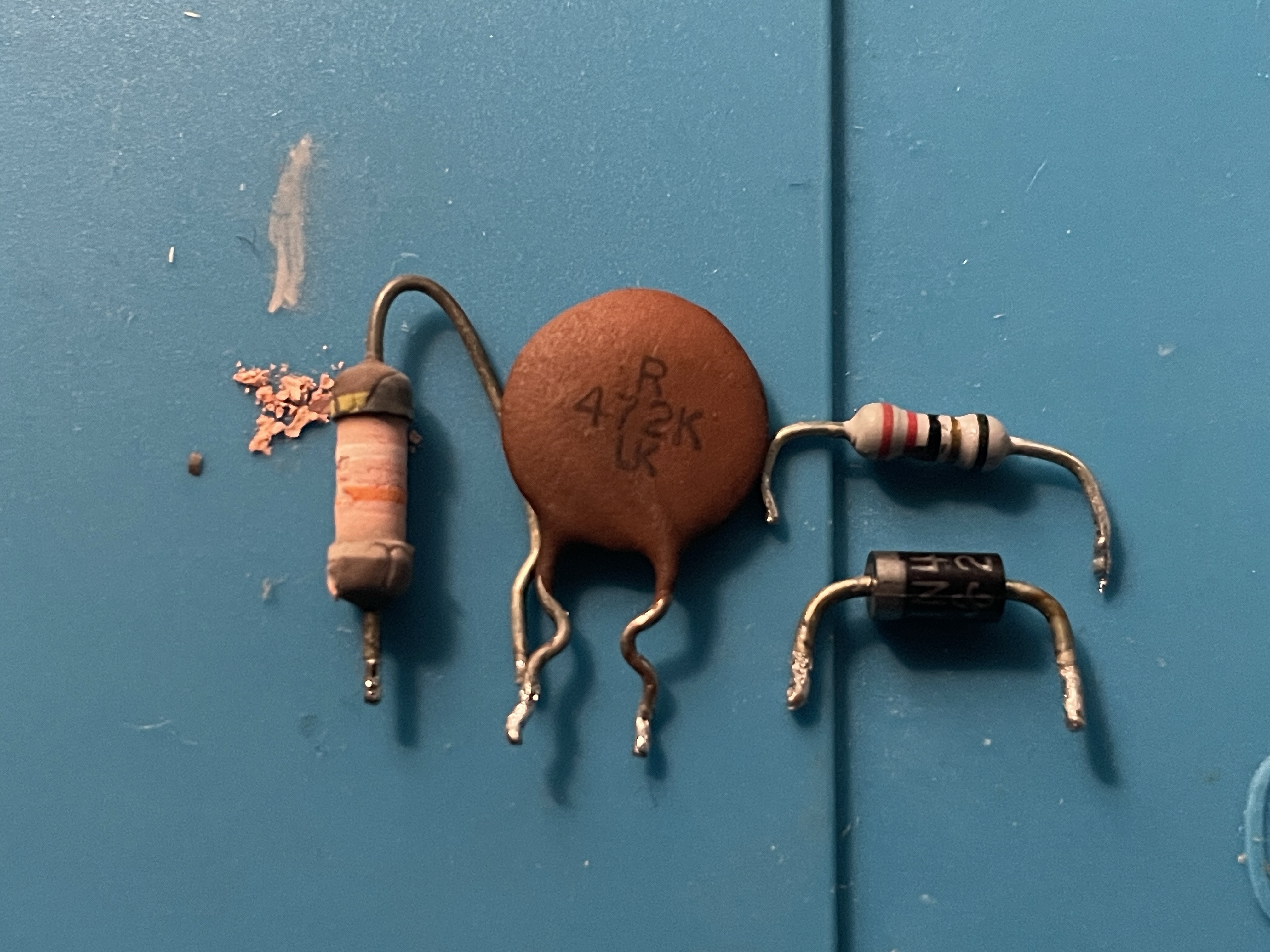

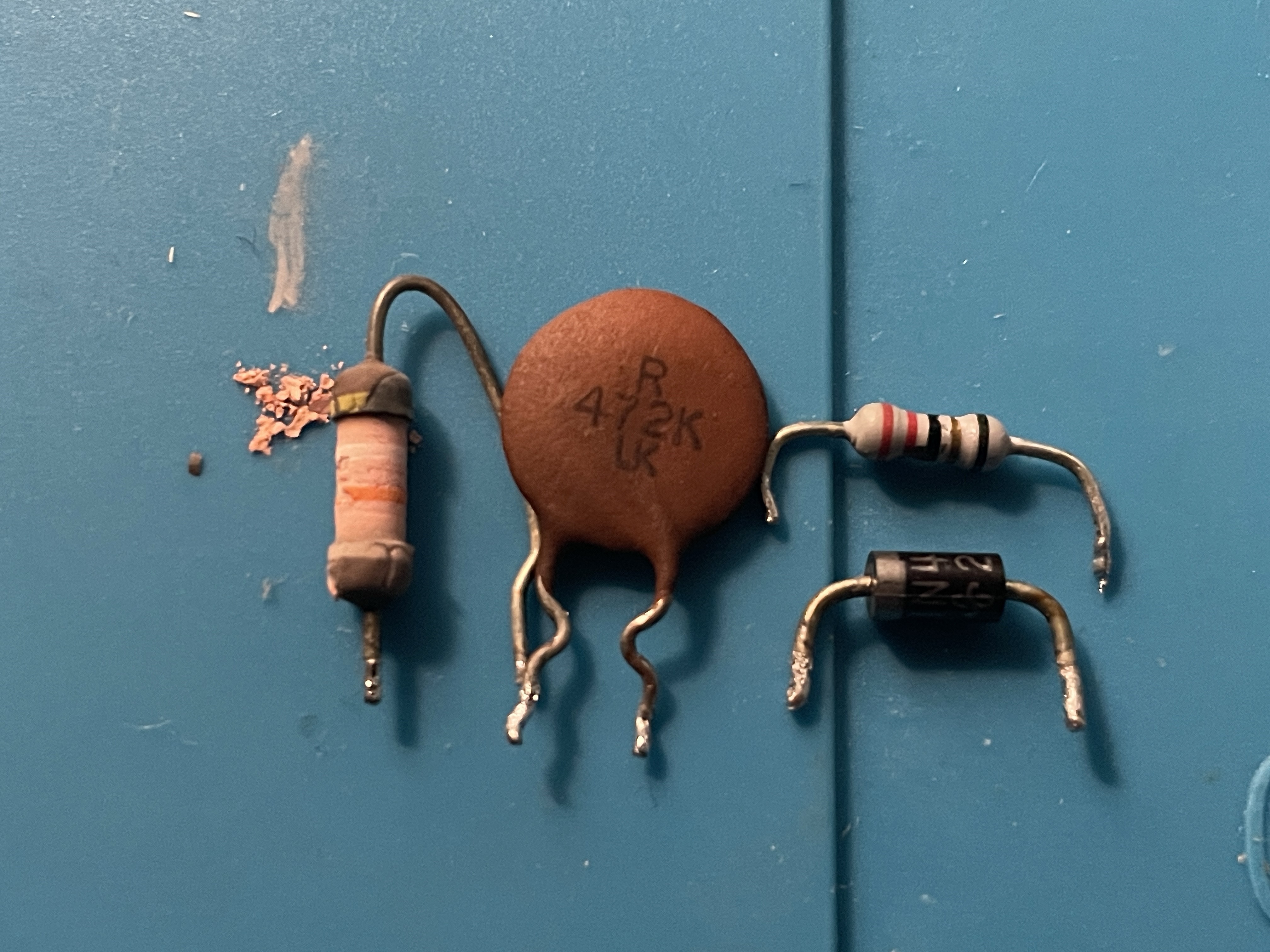

Removed 4 components to check: Resistor R902: color bands are difficult to distinguish, probably 47 ohms. blown up Capacitor C903: 4,7nF, working Resistor R901: Probably 32 ohms, blown up Diode D902: 1N4007, working |
|
|
|
|
I've changed the four components anyway and something blew up as soon as I connected it to the outlet. Can't see any other area or component burned, though. |
|
|
SMD resistor R906 (200 ohm) seems blown. |
|
|
R906 reads 60 ohms instead of 200; will replace it. P.S.: It was hot that moment. After cooling down it measures no line at all. |
|
|
Nothing changed. Blown PSU part is still blown somewhere. |
- Anonymous
