Issue0000036: No power
IDLynx 2: PAG-0401
Tagspower

Activities

Tak-MK

2024-06-28 15:32

administrator   ~0000134

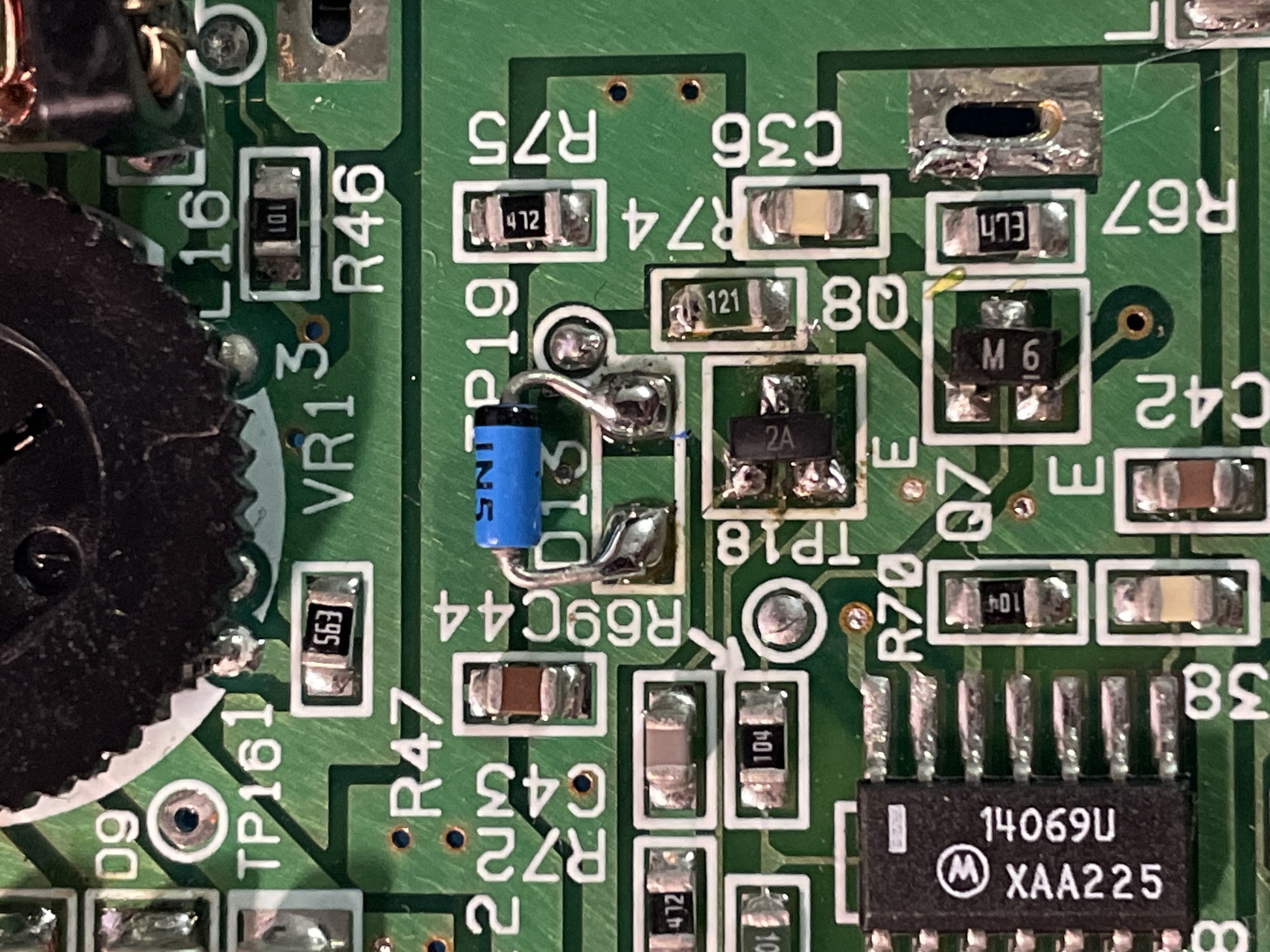

Transistor Q8 was fried while bypassing Q12.

Tak-MK

2024-06-28 15:32

administrator   ~0000135

Q8: MMBT3906
D13: 1N5991B

Tak-MK

2024-06-28 15:32

administrator   ~0000136

Board came recapped.

Tak-MK

2024-06-28 15:33

administrator   ~0000137

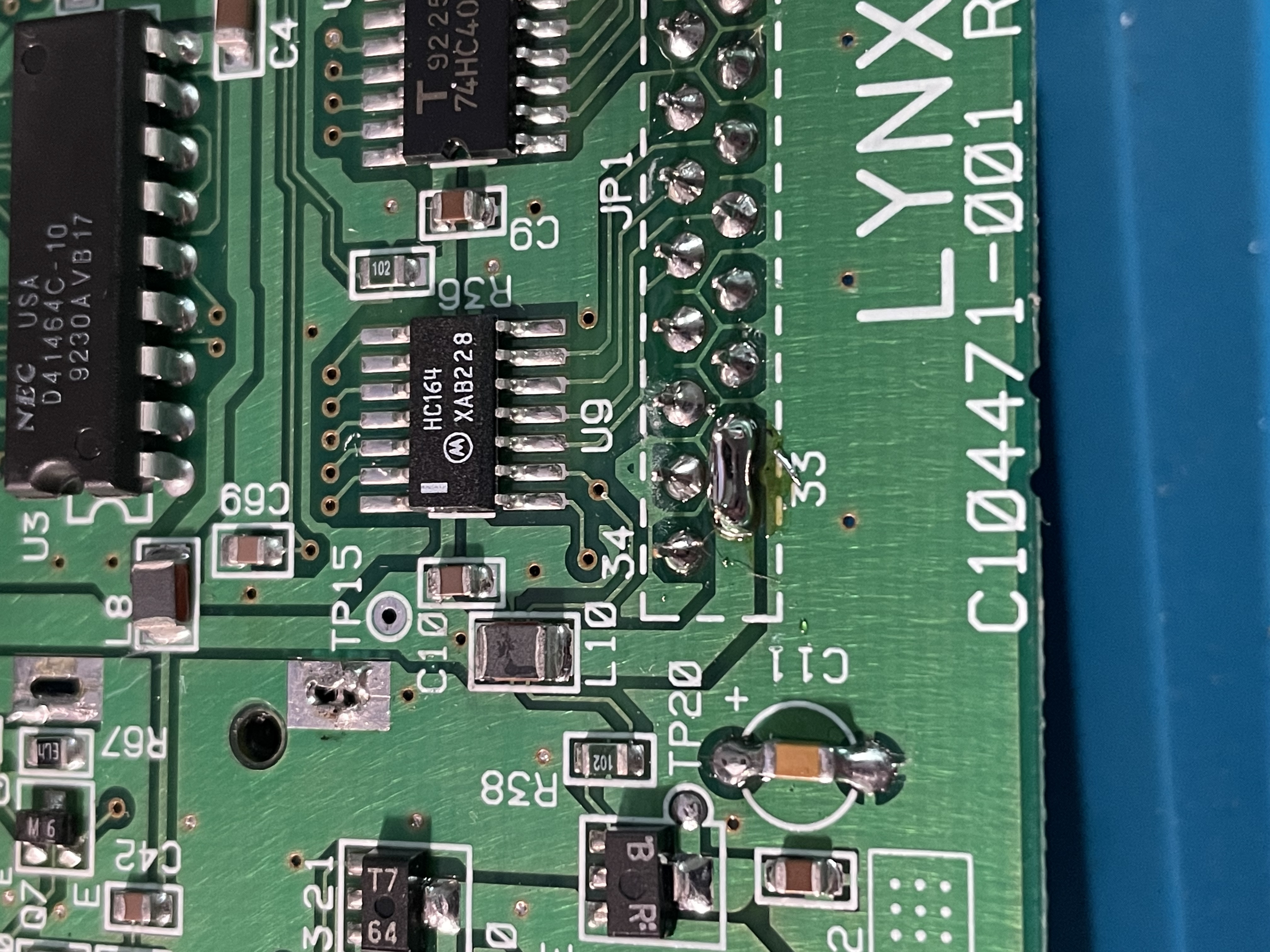

Shorted cartridge port pins 31 and 33 so system boots up without a cartridge inserted.

Tak-MK

2024-06-28 15:33

administrator   ~0000138

Last edited: 2024-06-28 15:33

 Replaced D13 and Q8, system now works again.
