Motherboard: SHVC-CPU-01 |
|
|

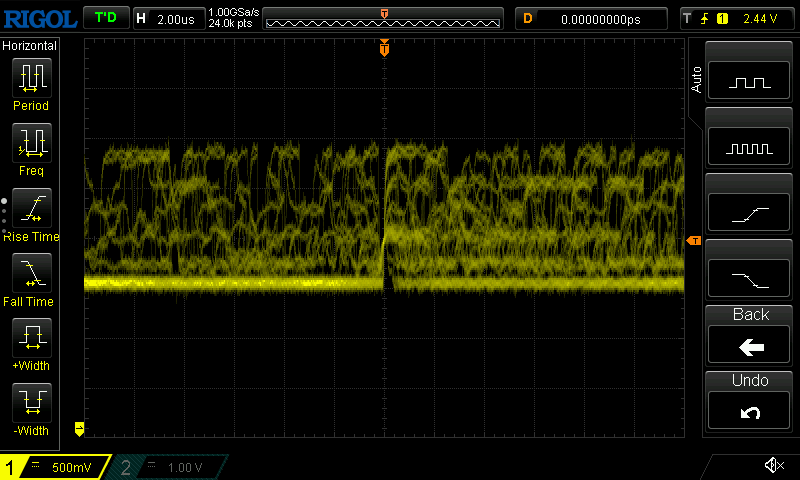

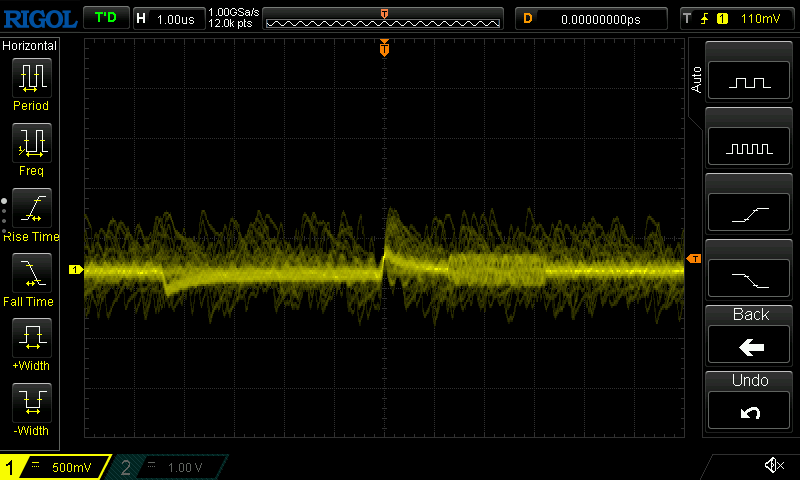

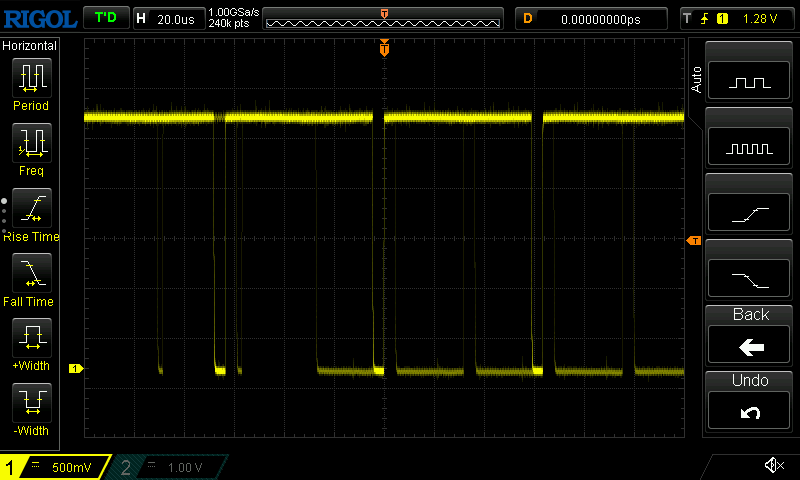

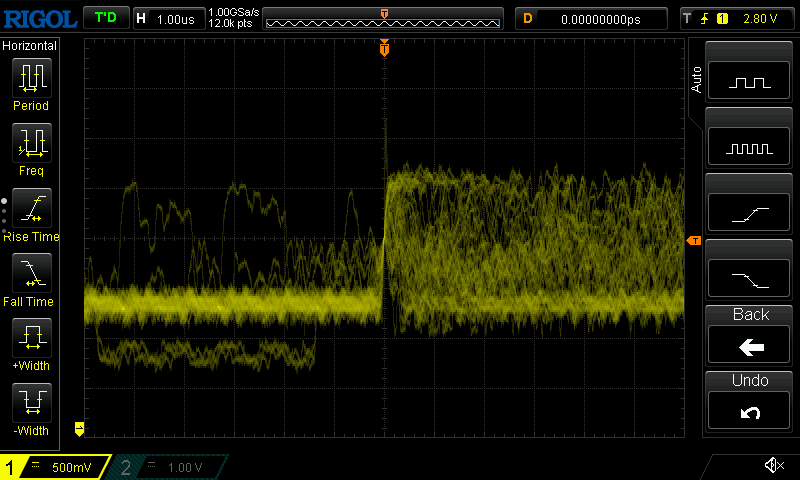

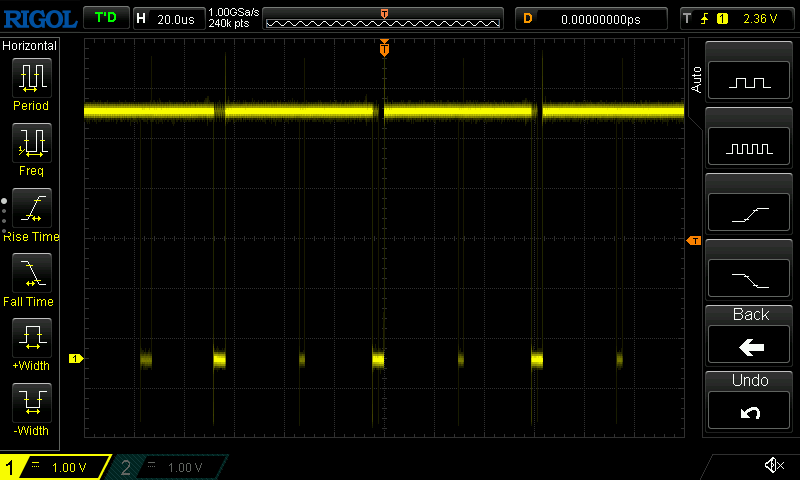

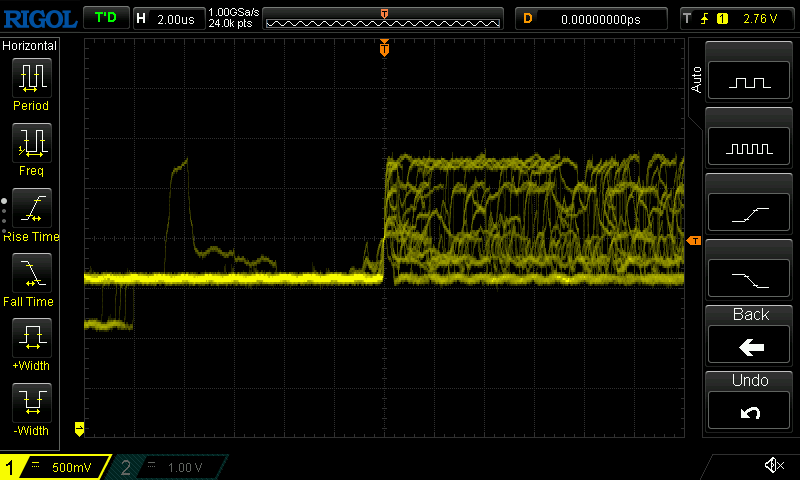

Sync and image seems to be correct from encoder, but composite signal is kinda broken before arriving to AV port, so I'll recap that area. AV 3 CSYNC.png (52,343 bytes) AV 7 Luma.png (58,634 bytes) AV 9 Composite.png (66,077 bytes) ENC 7 Composite out.png (81,746 bytes) ENC 8 Sync in.png (54,900 bytes) ENC 23 Luma out.png (87,105 bytes) |
|
|

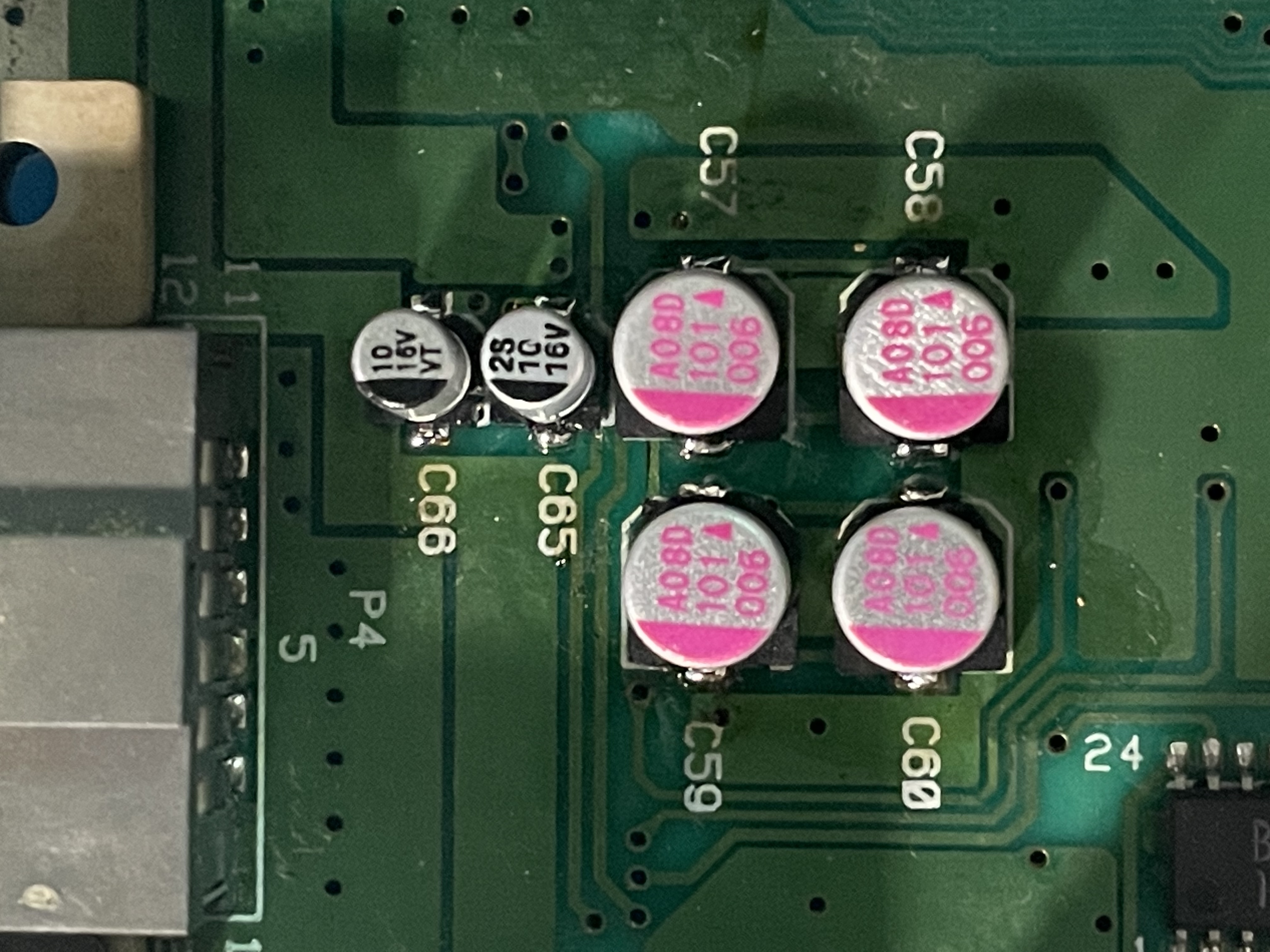

Changed all six caps just in case; problem solved. IMG_5367.JPG (2,105,321 bytes) |
|
|
Controller port 2 doesn't work. Board has continuity, but port pins are rusted. |
|
|
Cleaned with rust solvent. |
- Anonymous
