0000020: There's no lens and no power switch

ID	Project	Category		Date Submitted	Last Update

0000020	PlayStation 2	Consoles		2024-06-28 02:03	2024-06-30 15:16

Priority	Normal
Status	No components	Resolution	Shelved

Issue	0000020: There's no lens and no power switch
ID	PlayStation 2 Slim: SCPH-70004
Tags	game, power

Tak-MK 2024-06-28 02:03 administrator ~0000066	Tried to put another power switch but there's no light and doesn't power on either.

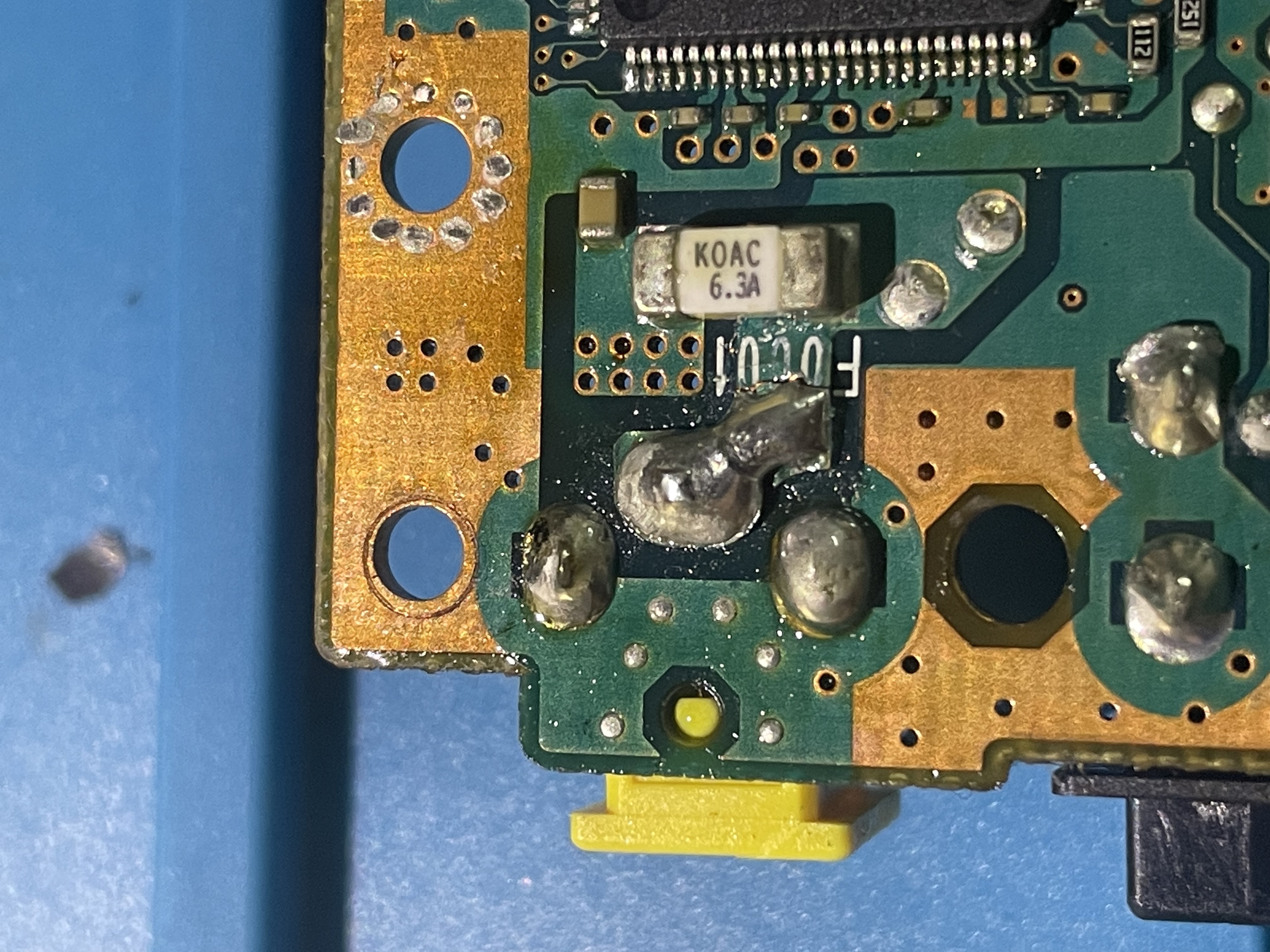

Tak-MK 2024-06-28 02:03 administrator ~0000067	There's a cold solder on the power connector. IMG_5283.JPG (2,764,068 bytes) IMG_5283.JPG (2,764,068 bytes)

Tak-MK 2024-06-28 02:03 administrator ~0000068	Pad is broken too.

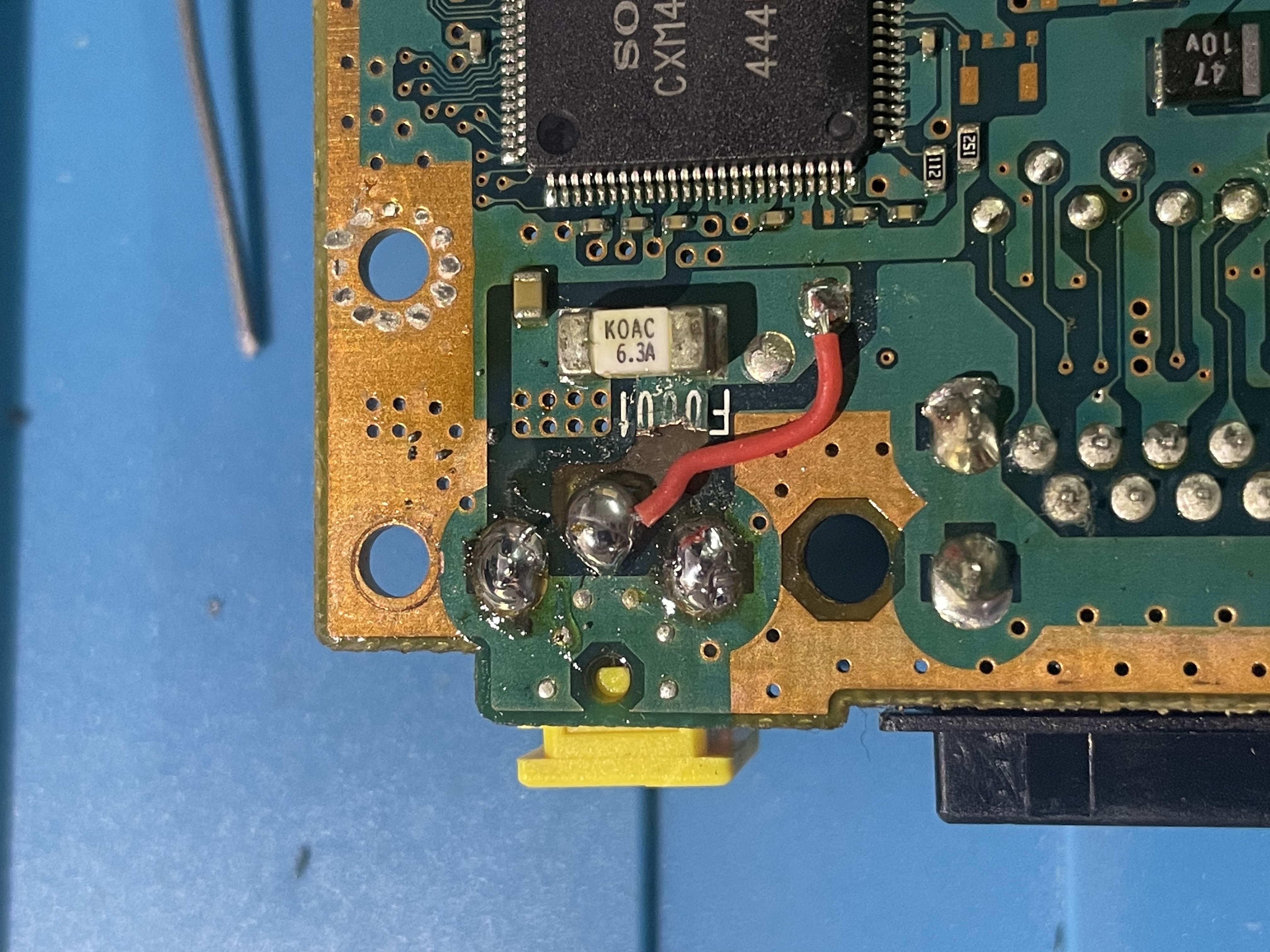

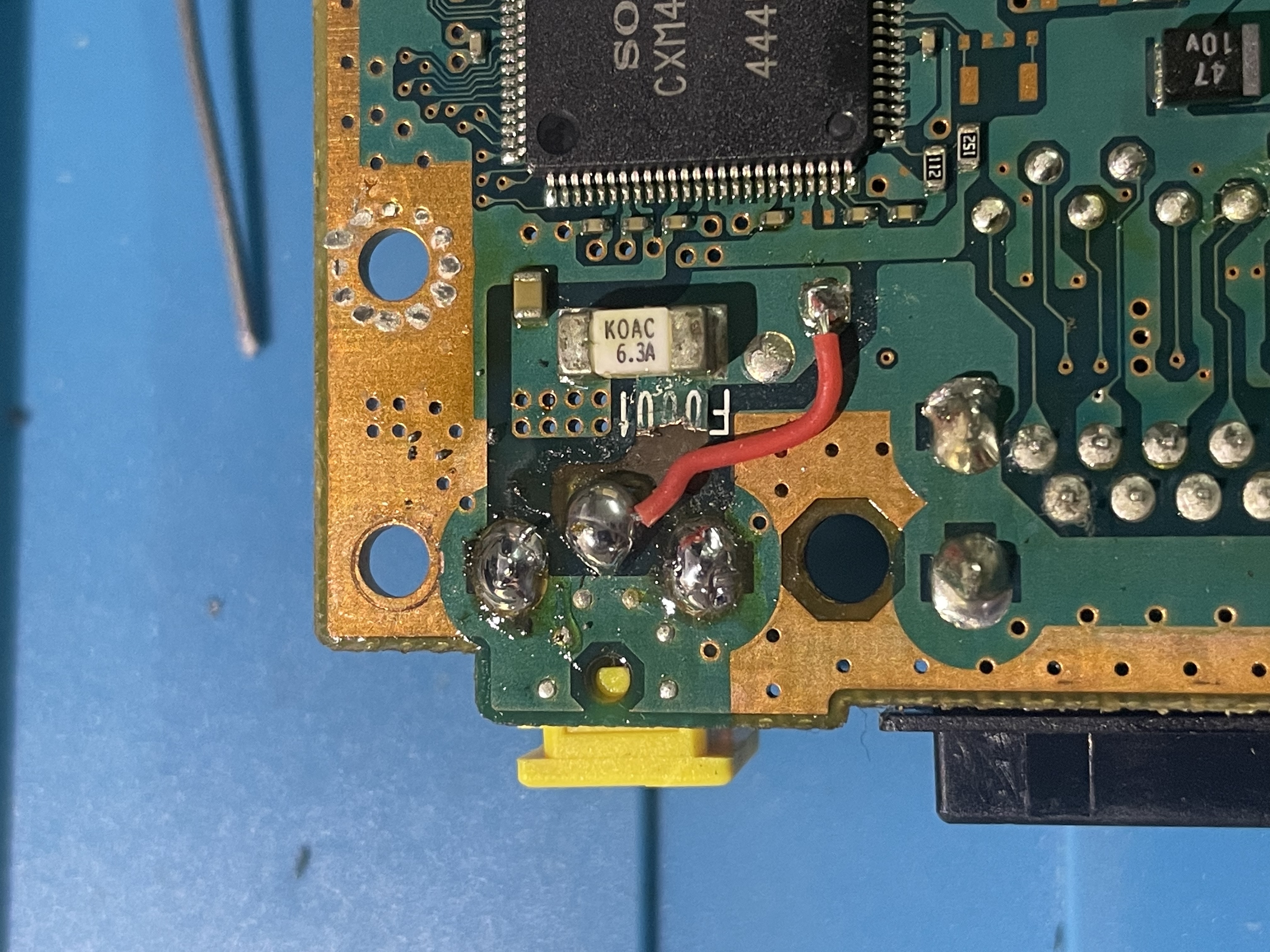

Tak-MK 2024-06-28 02:04 administrator ~0000069	Resoldered the conector and did a bridge on the central pin. IMG_5284.JPG (2,961,887 bytes) IMG_5284.JPG (2,961,887 bytes)

Tak-MK 2024-06-28 02:04 administrator ~0000070	Dead battery. No CD pick up.
