Motherboard SHVC-CPU-01 |
|
|

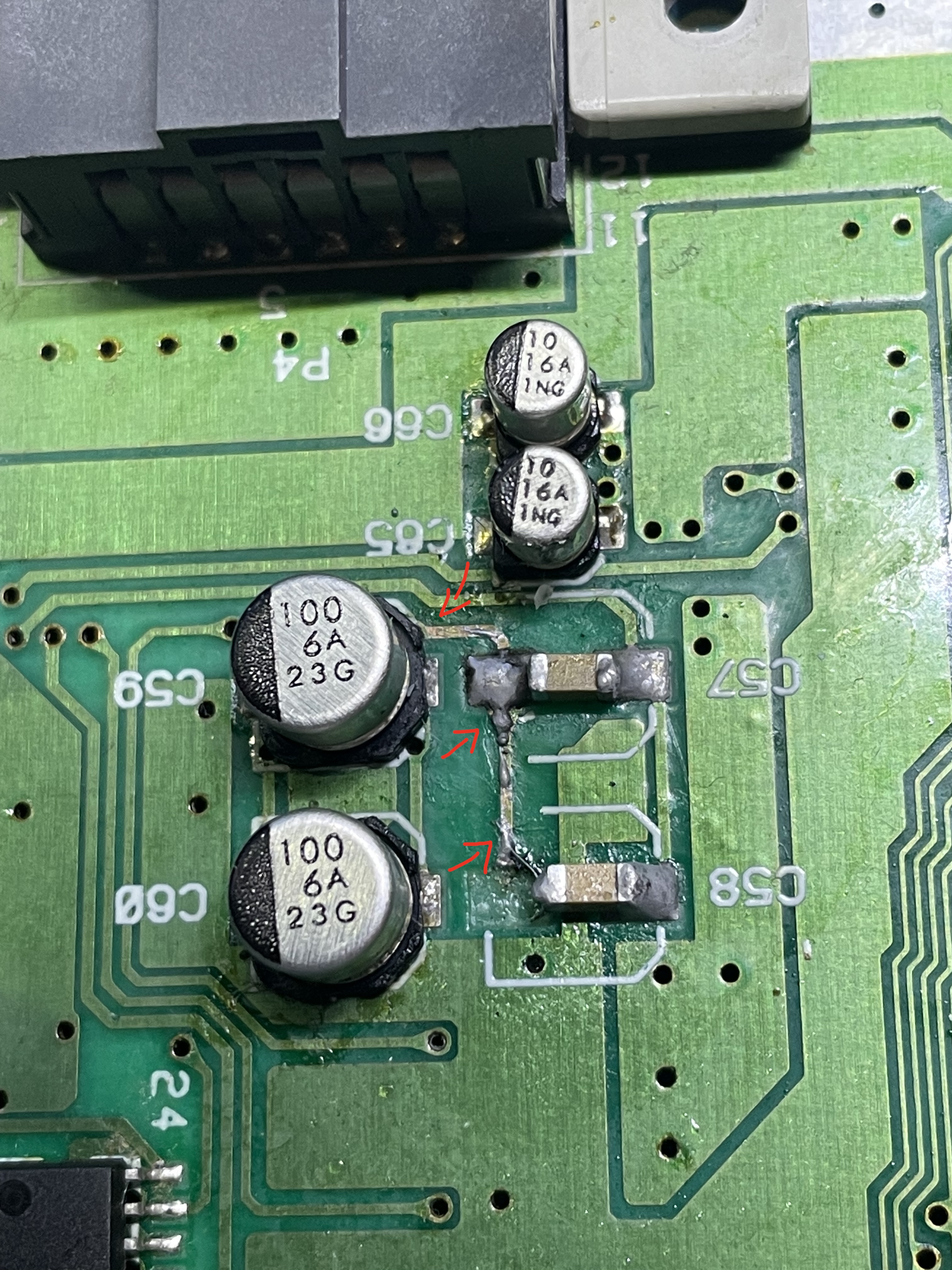

Broken trace near capacitor C57 (the one that goes from C58 to C57 and then under C59). trace_fix.jpg (4,068,156 bytes) |
|
|

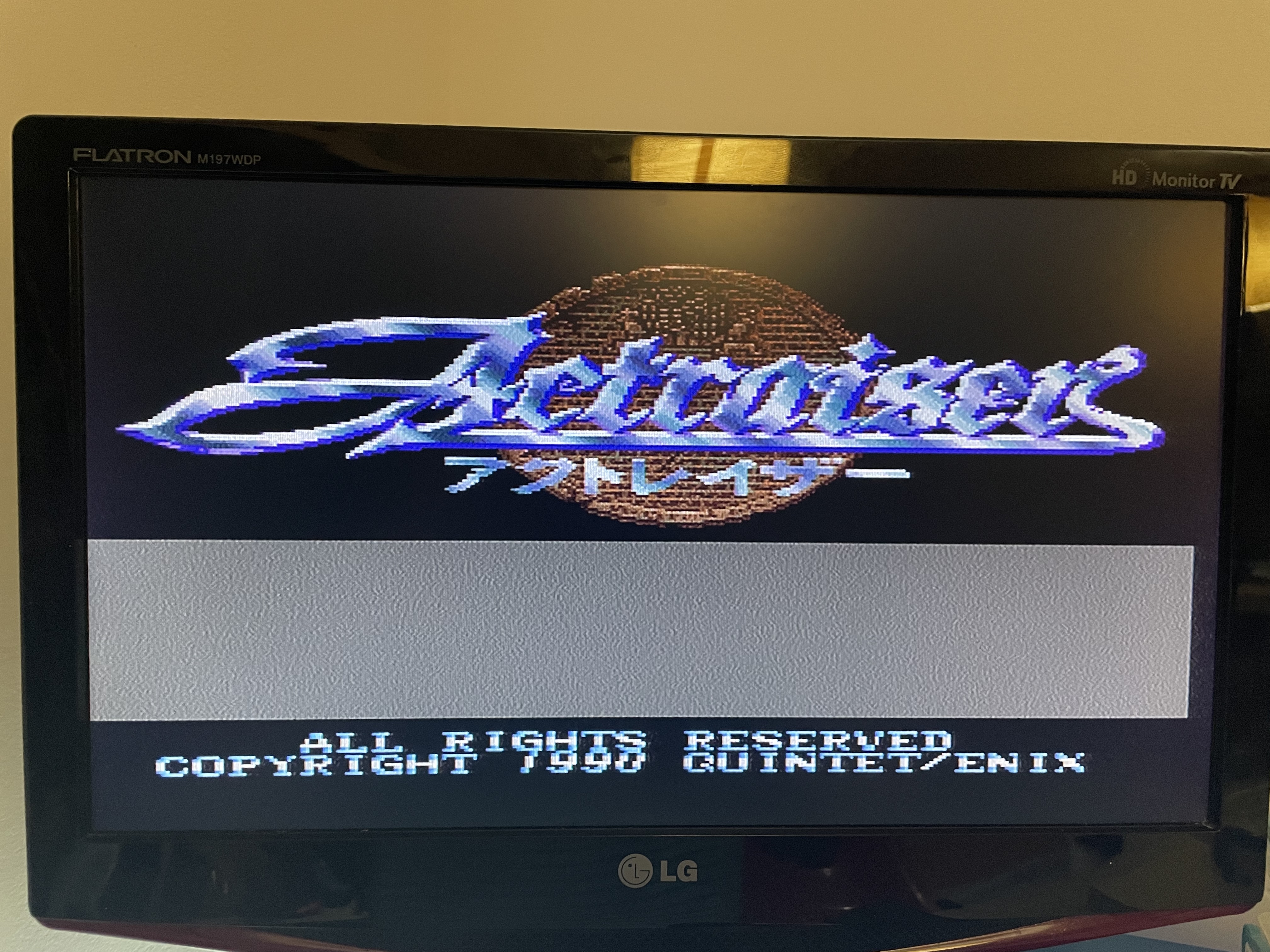

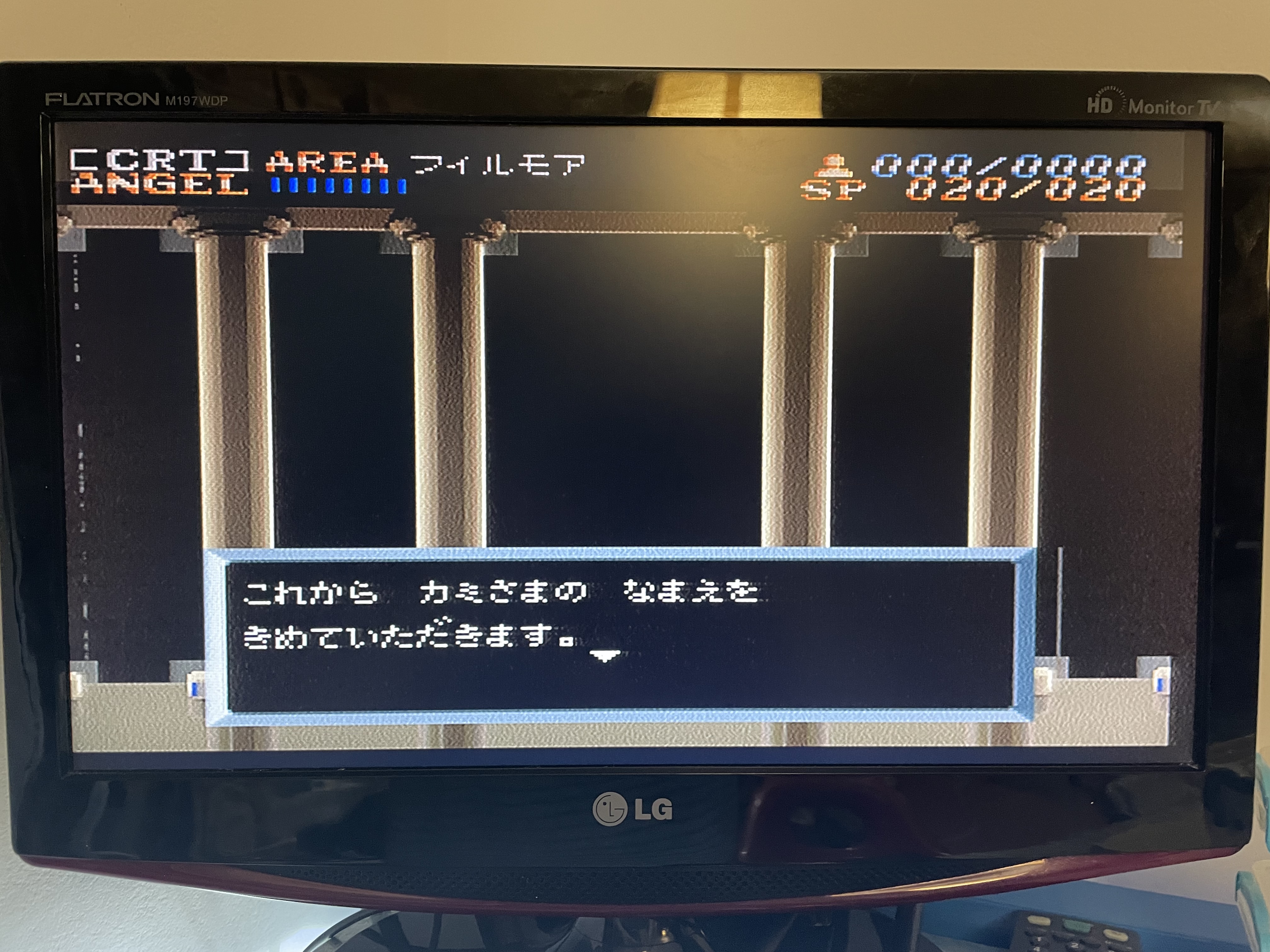

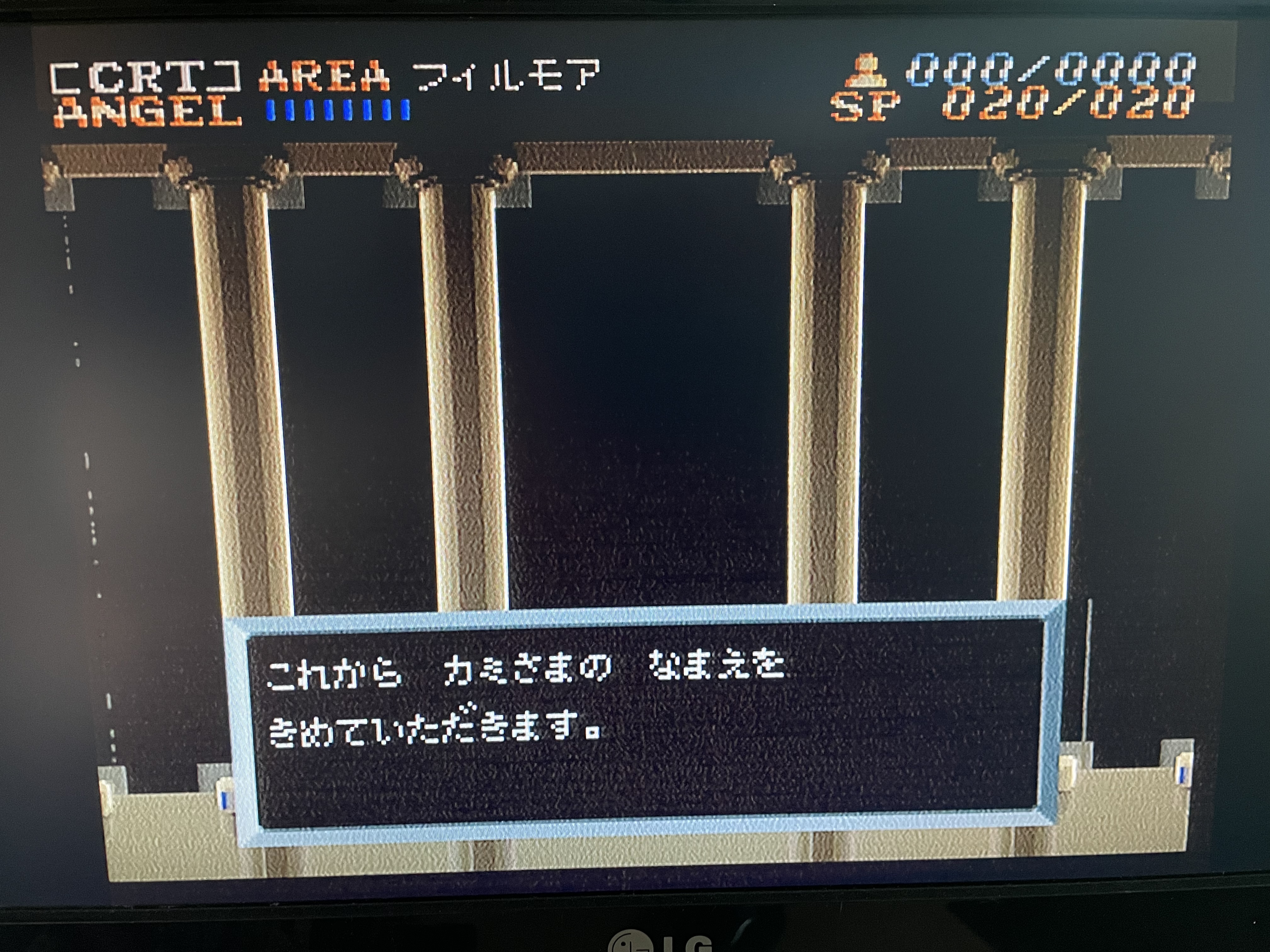

Loses image after a while. 1.jpg (3,384,366 bytes) 2.jpg (3,667,605 bytes) 3.jpg (3,162,839 bytes) 4.jpg (3,588,248 bytes) 5.jpg (3,429,648 bytes) |
|
|

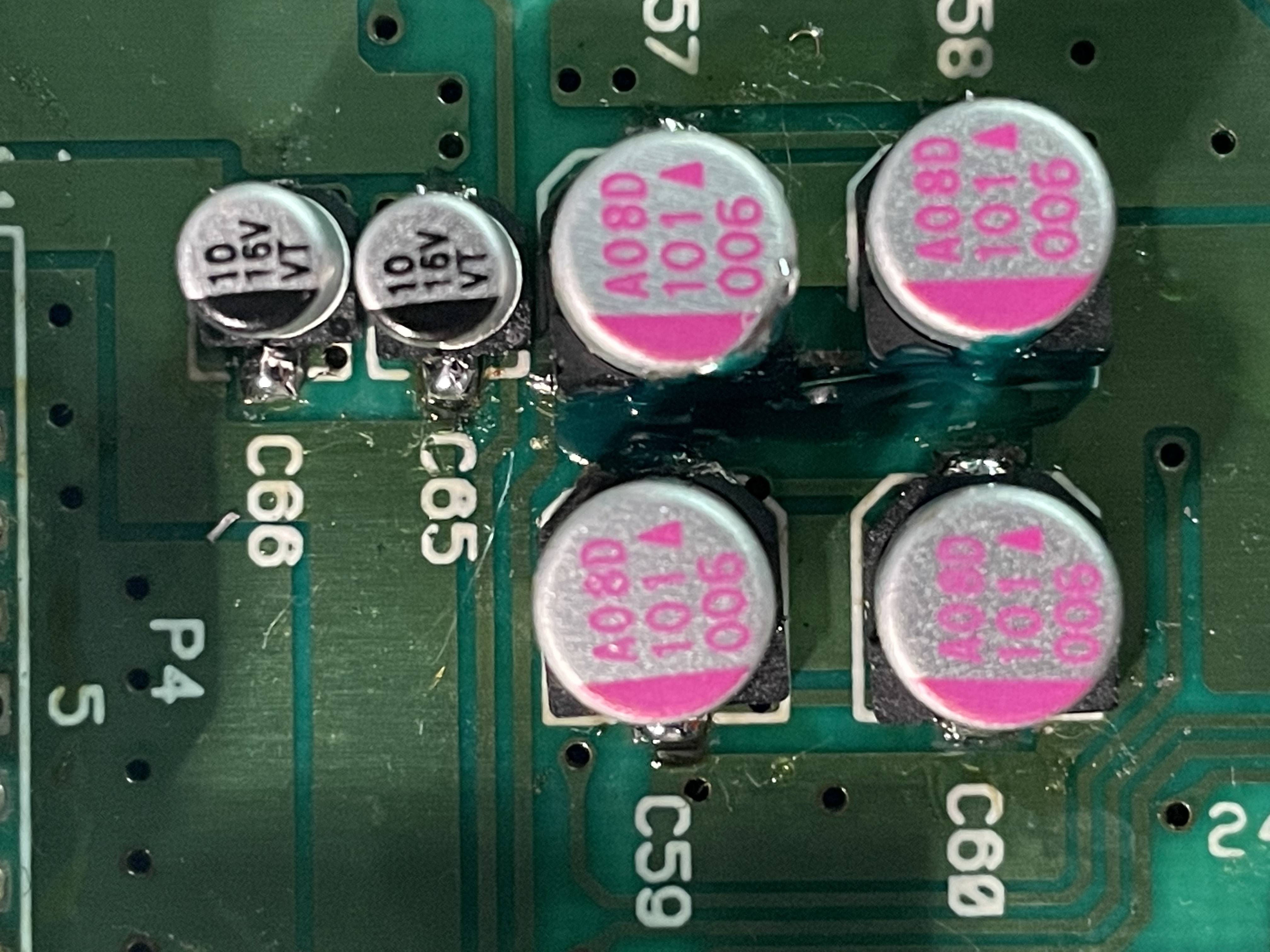

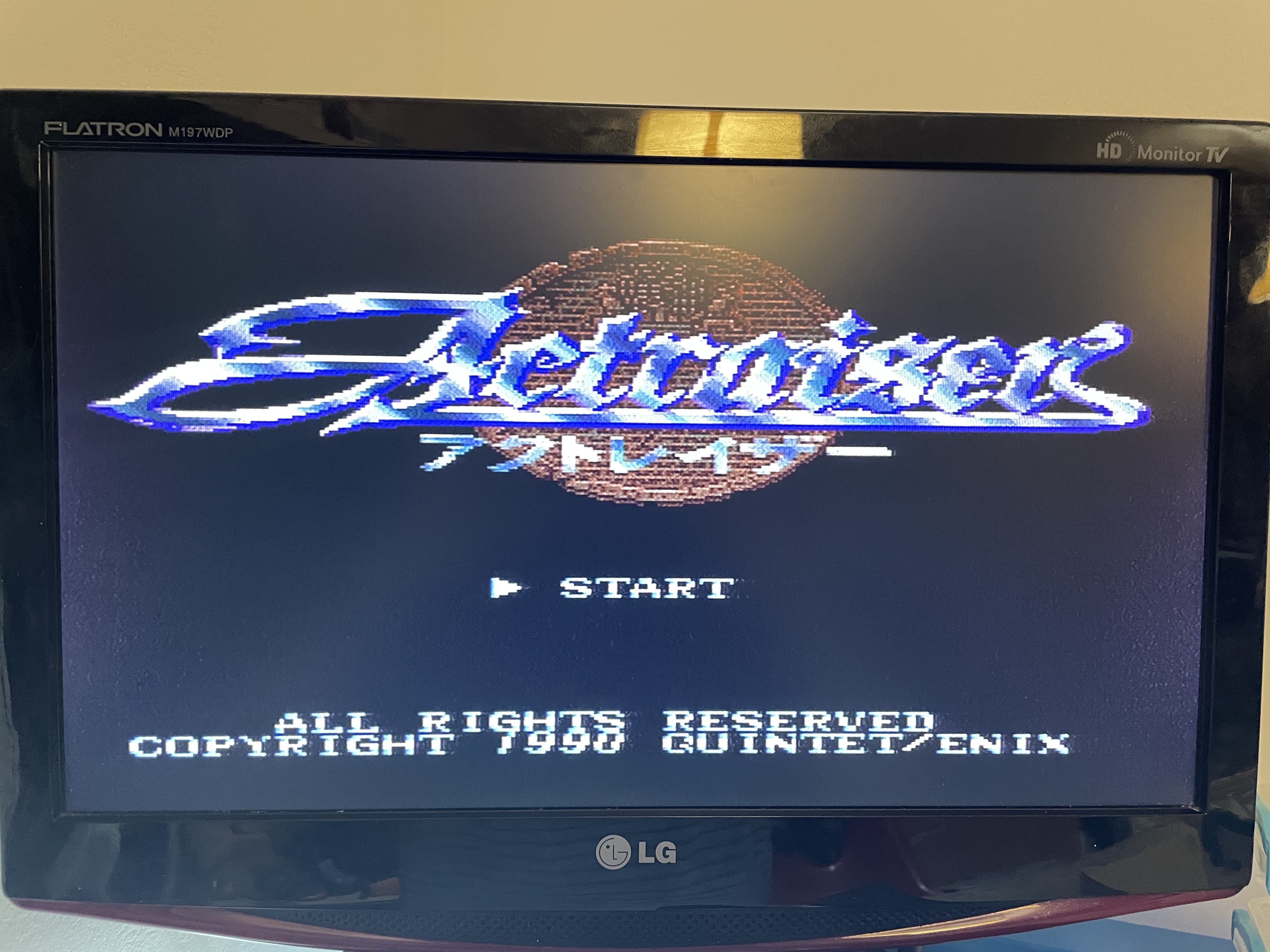

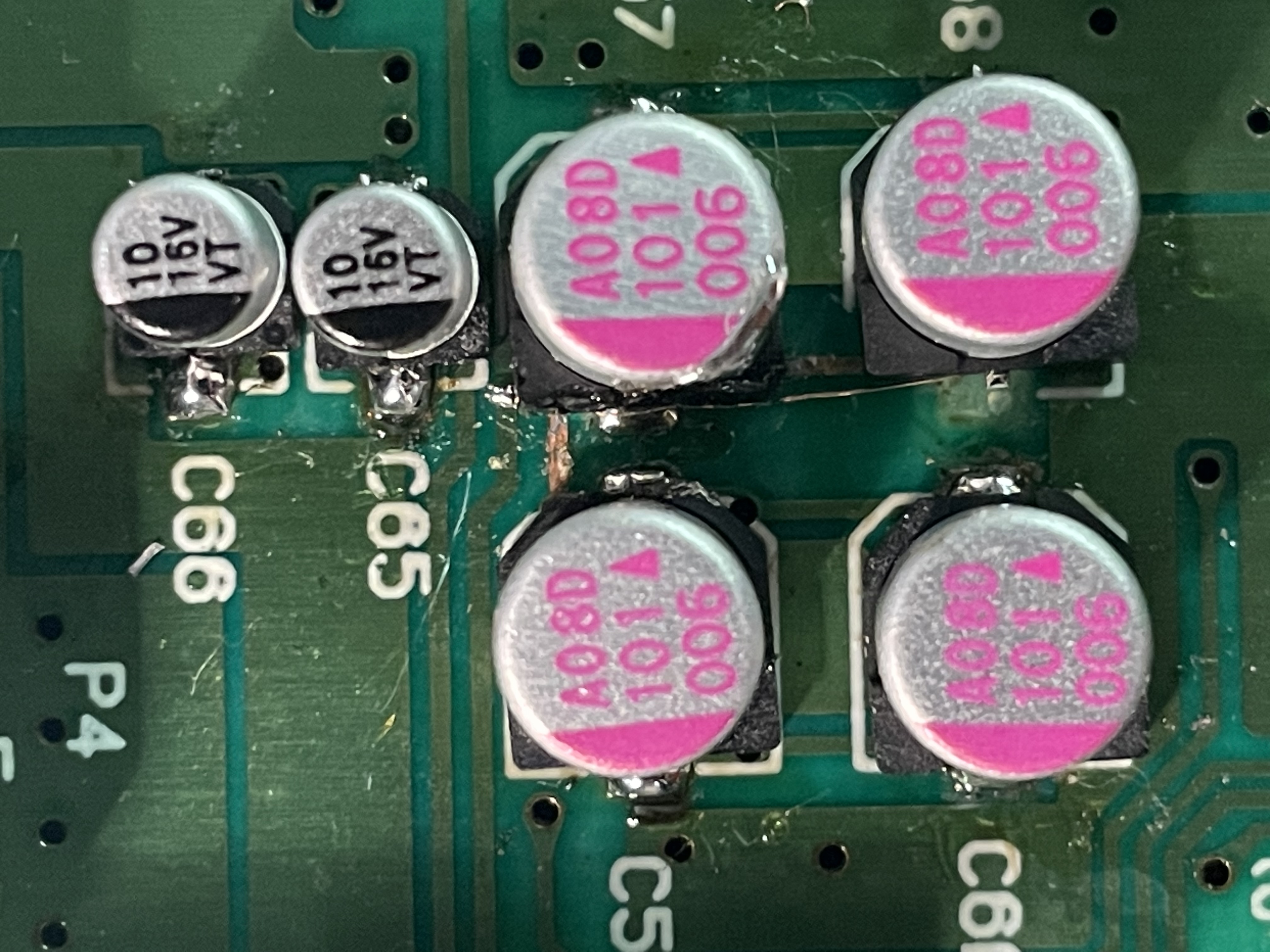

Recapped the AV port area, and redid the broken trace; SFC working again. IMG_5380.JPG (2,063,464 bytes) IMG_5381.JPG (2,191,225 bytes) |
|
|

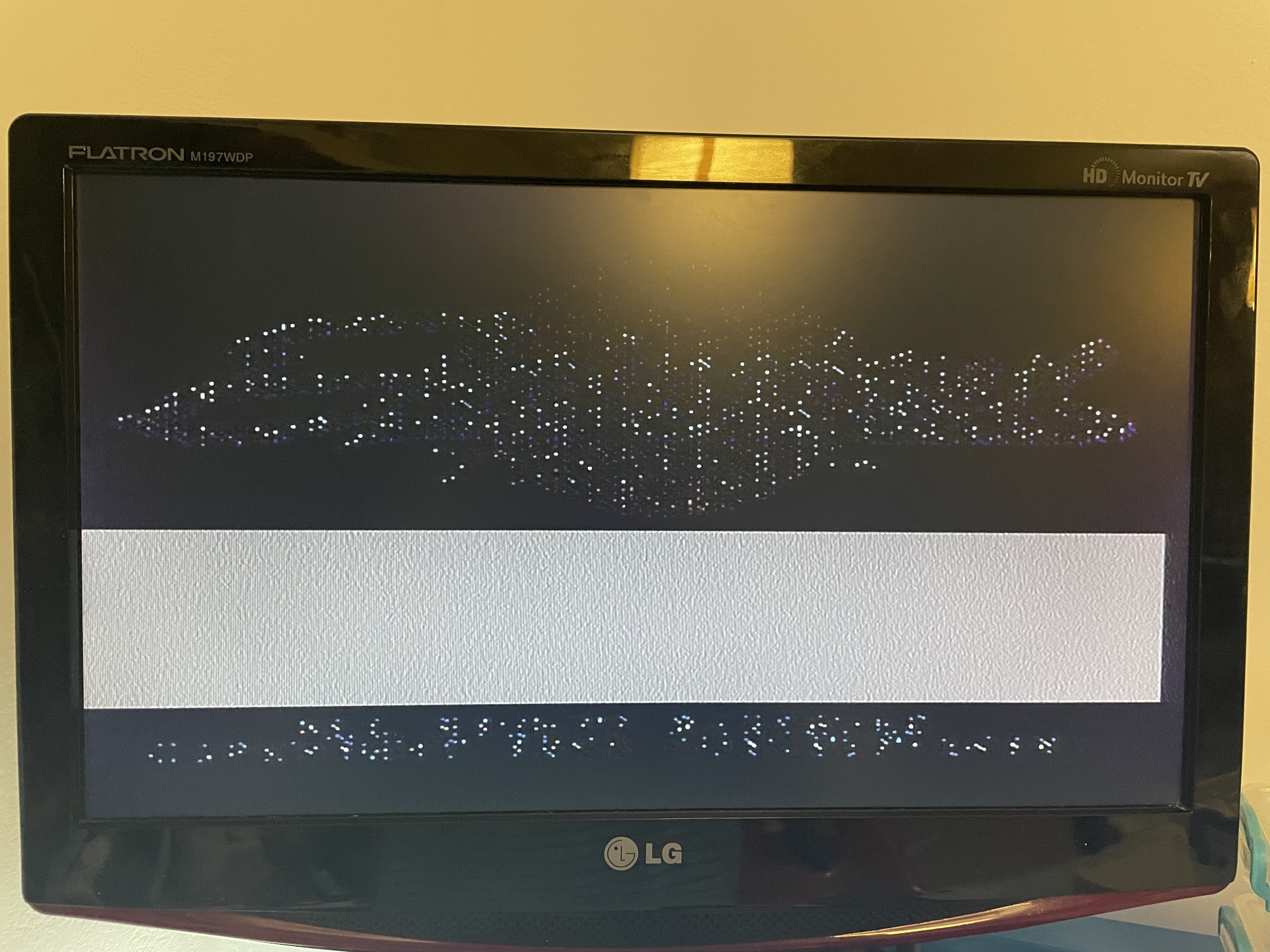

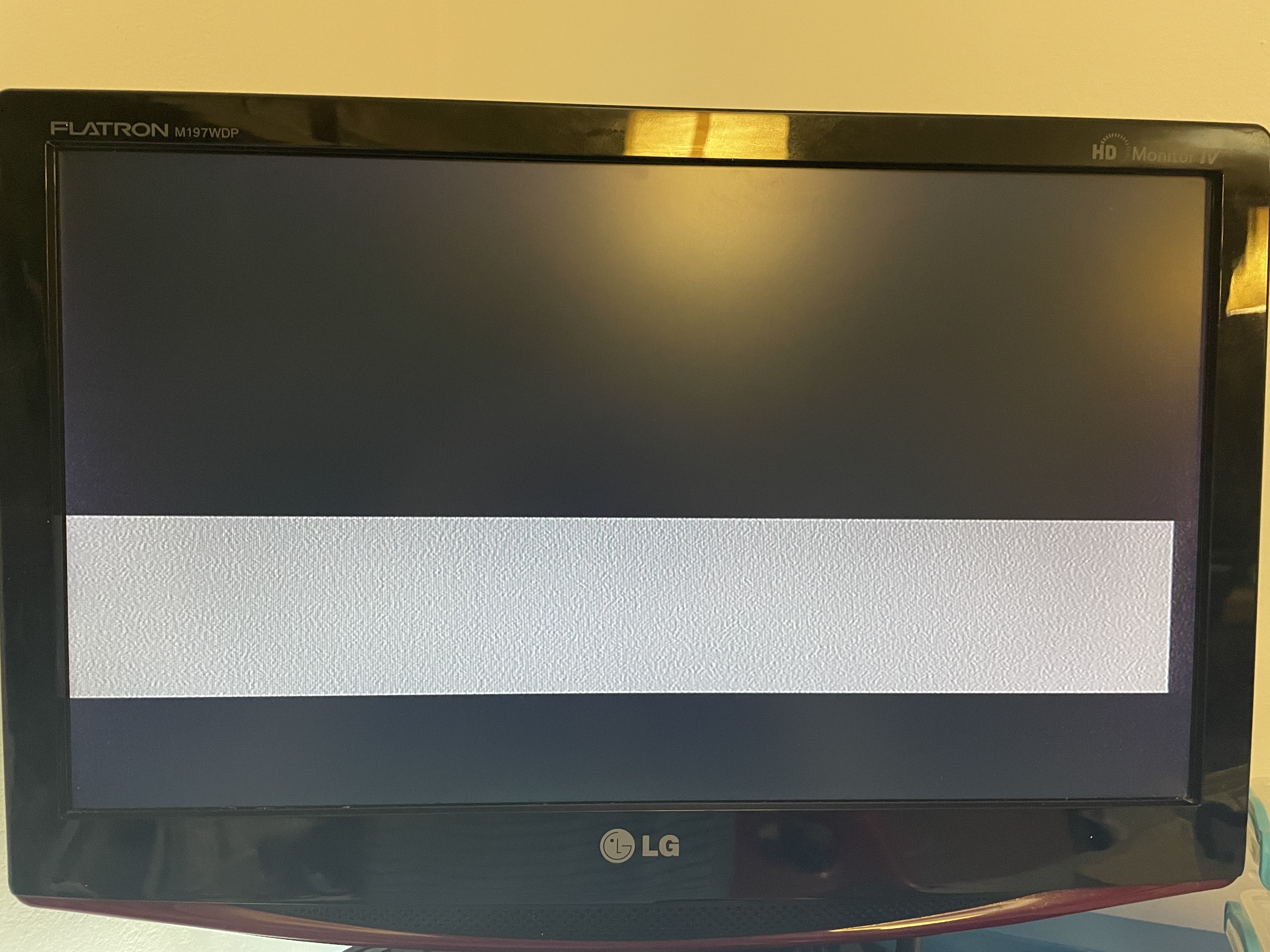

It started to fail again, but now it seems more like a PPU issue since sprites and moving backgrounds aren't working. Intro doesn't fade out as before. IMG_5383.JPG (3,670,899 bytes) IMG_5384.JPG (4,037,659 bytes) |
- Anonymous
