Dead battery. |
|
|
Applied lithium grease on lens rail. |
|
|
Pots readings: CD: 0.651k ohm DVD: 1.022k ohm |
|
|
CD motor doesn't spin (have to check both lid sensors). |
|
|

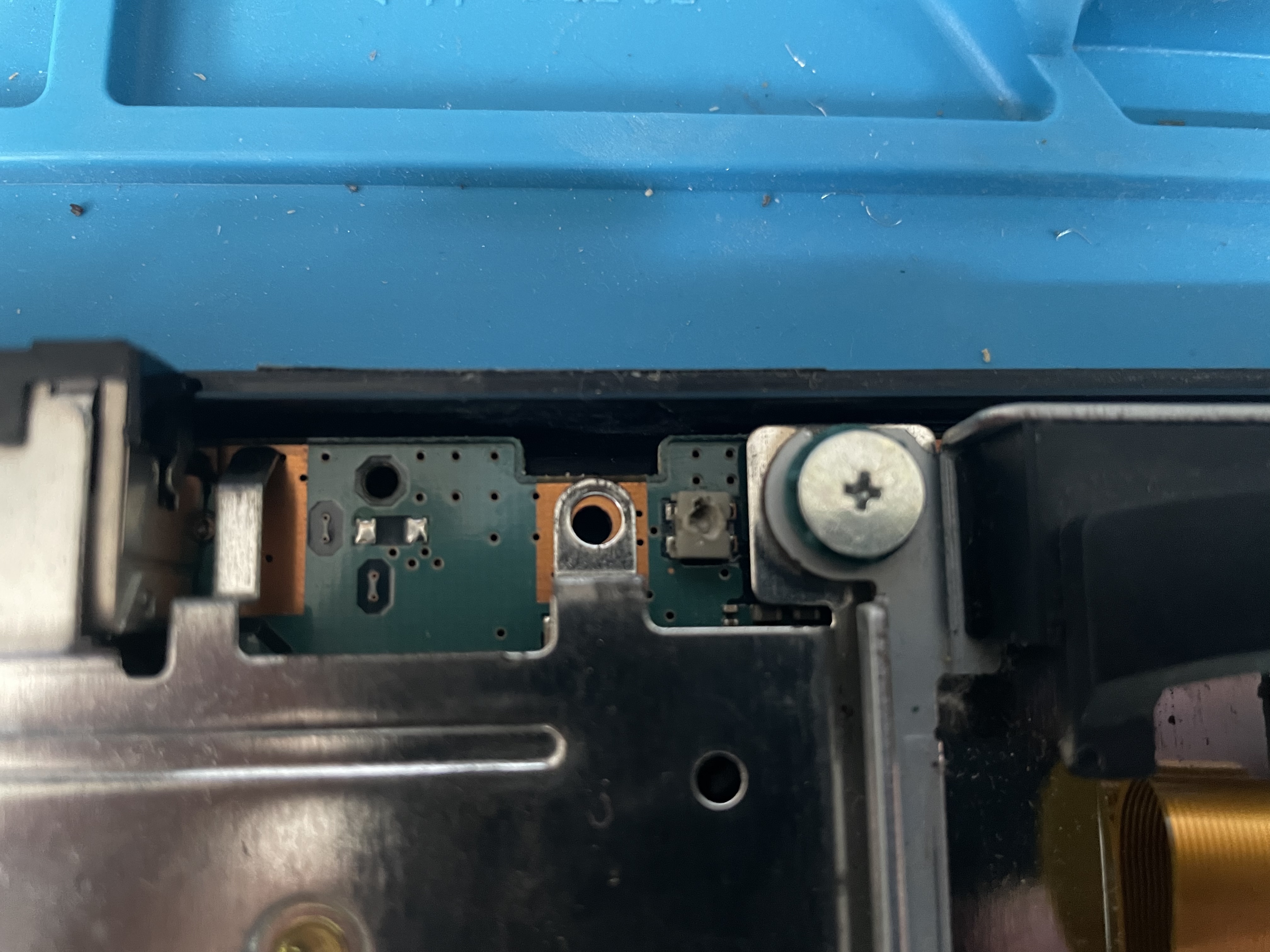

Broken back lid sensor. IMG_5278.JPG (2,694,179 bytes) |
|
|

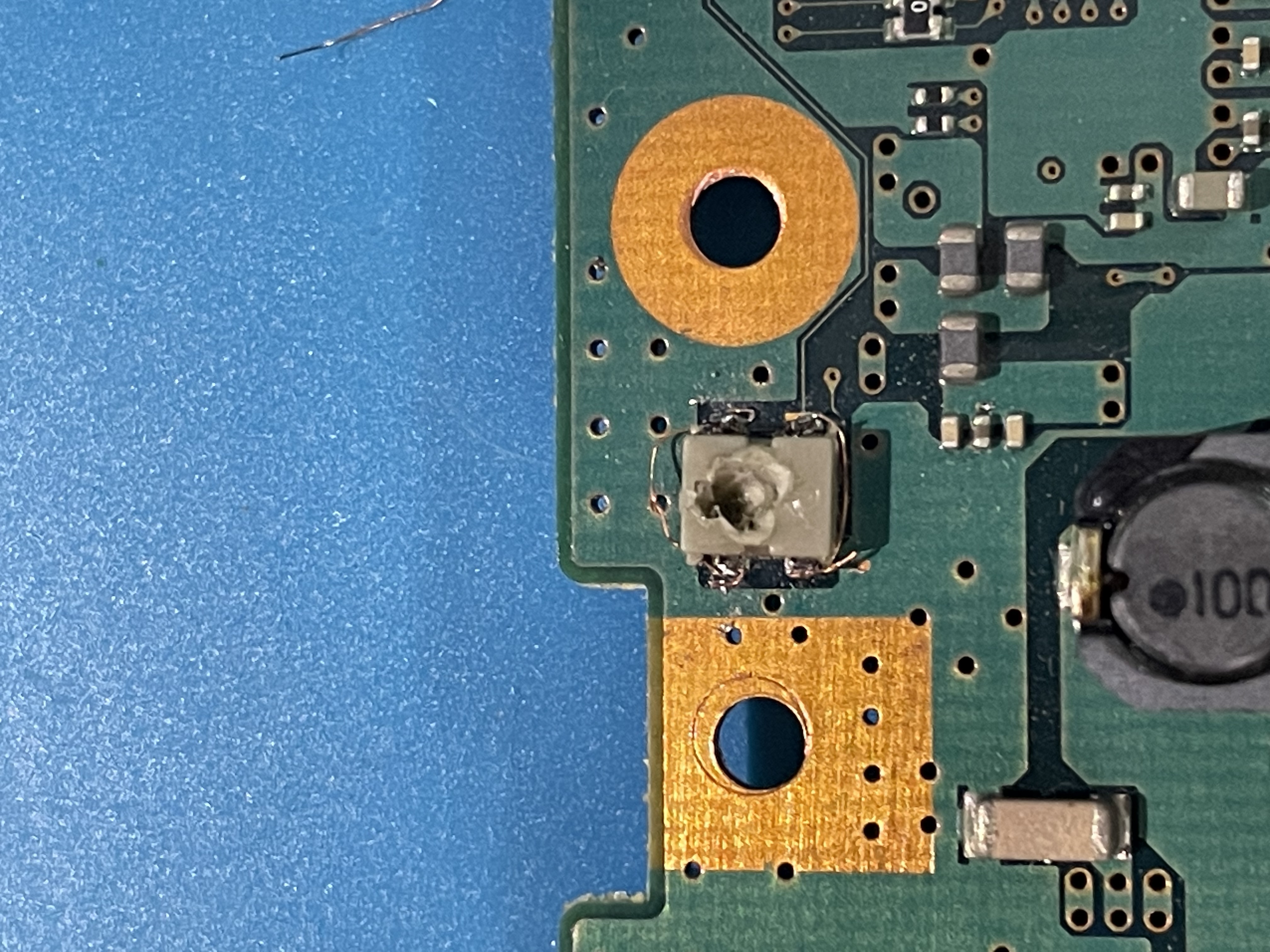

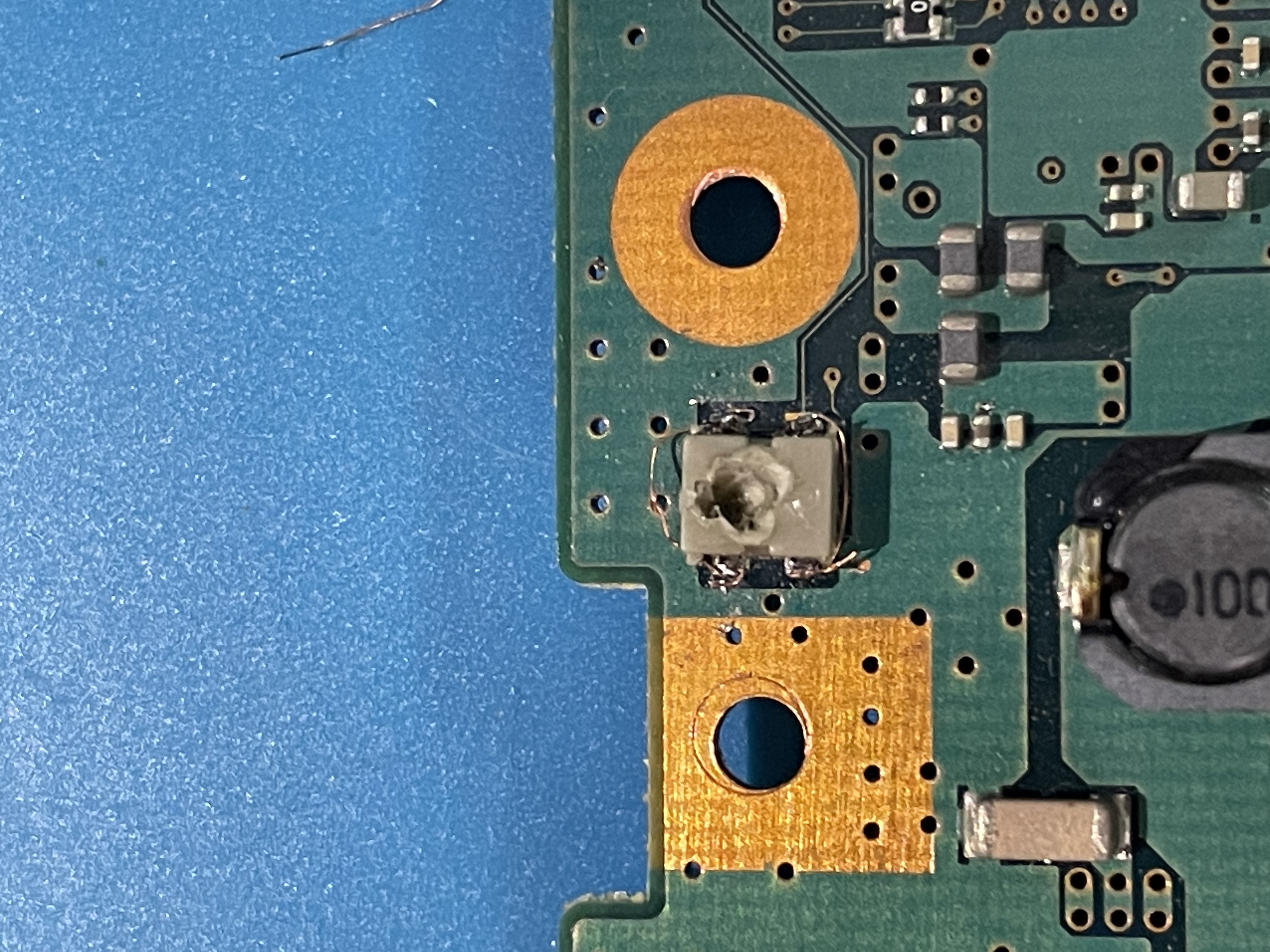

I couldn't desolder the broken switch so I bypassed it with enameled wire. IMG_5279.JPG (2,406,423 bytes) |
|
|
Still doesn't spin. Will try to put DC directly to the motor to check if it's alive, and then the traces from flex cable. |
|
|

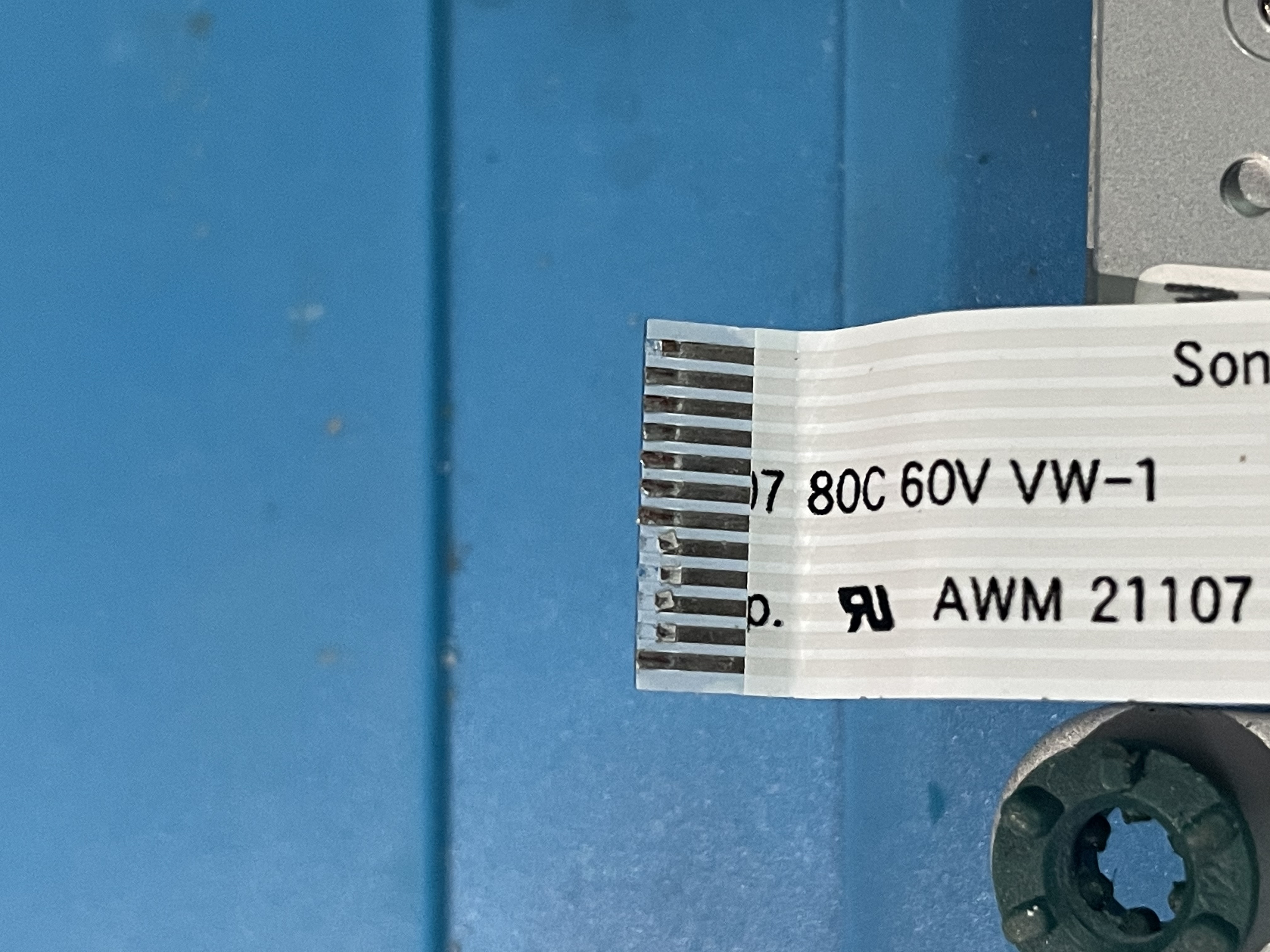

CD motor flex cable has some bent pins. IMG_5280.JPG (2,344,946 bytes) |
|
|
Flex cable pins fixed. |
|
|
Motor seems to work when applied DC directly. Probably electricity doesn't arrive to connector because of bad lid switch bridge or something around that; I'll compare it with another PS2 first. |
- Anonymous
