Issue0000013: Stuck after TMSS screen
IDMega Drive: 1601-18
Tagsgame

Activities

Tak-MK

2024-06-28 01:29

administrator   ~0000041

FM and DAC tests don't work.
Possible Z80 SRAM failure.

Tak-MK

2024-06-28 01:29

administrator   ~0000042

Motherboard: VA6

Tak-MK

2024-06-28 01:29

administrator   ~0000043

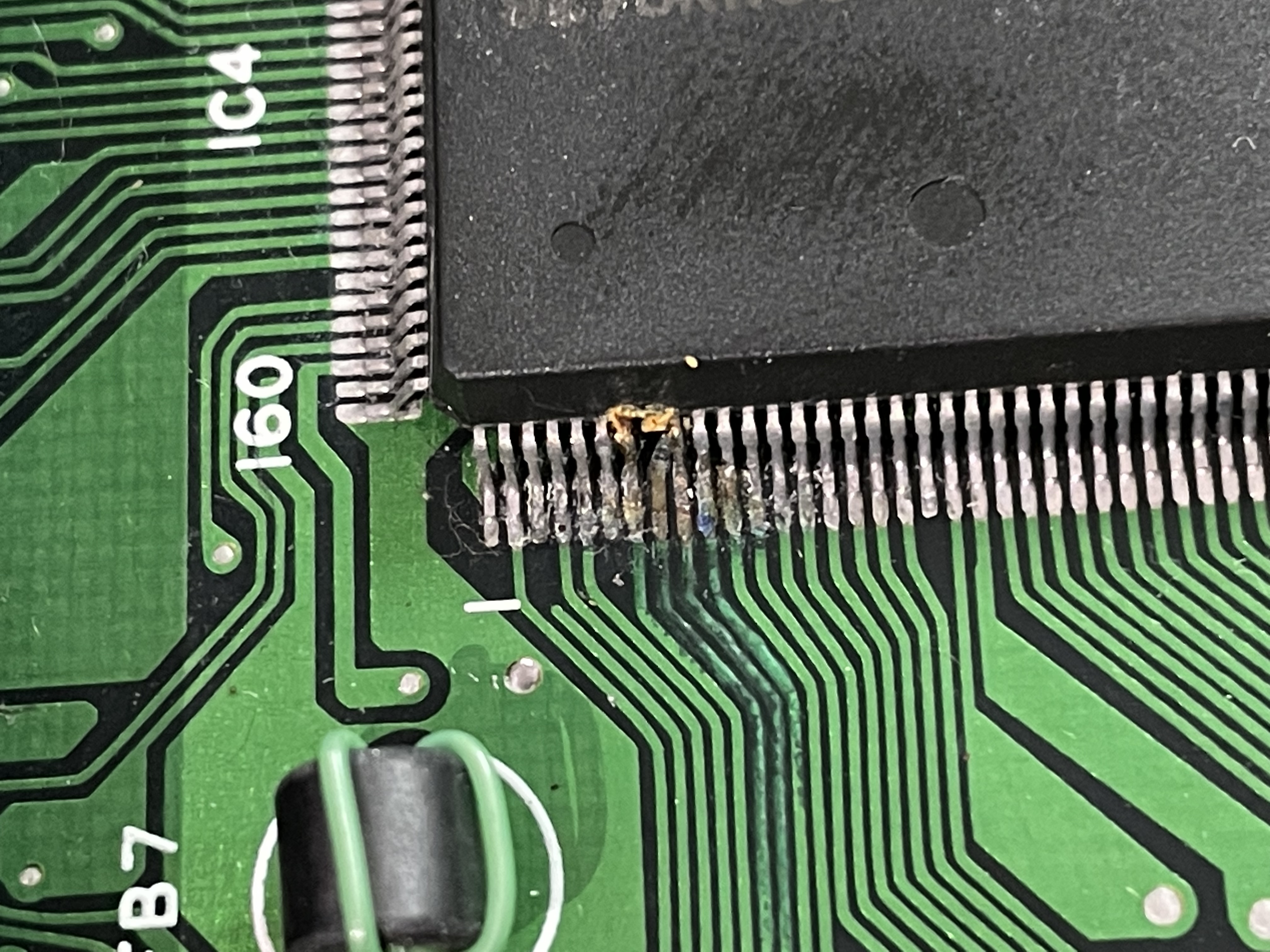

315-5433 has two rusted and broken pins:
7: /ZRES Reset Z80
8: /ZBUSRQ

Tak-MK

2024-06-28 01:30

administrator   ~0000044

Traces near it are also broken; I'll use it for parts.
